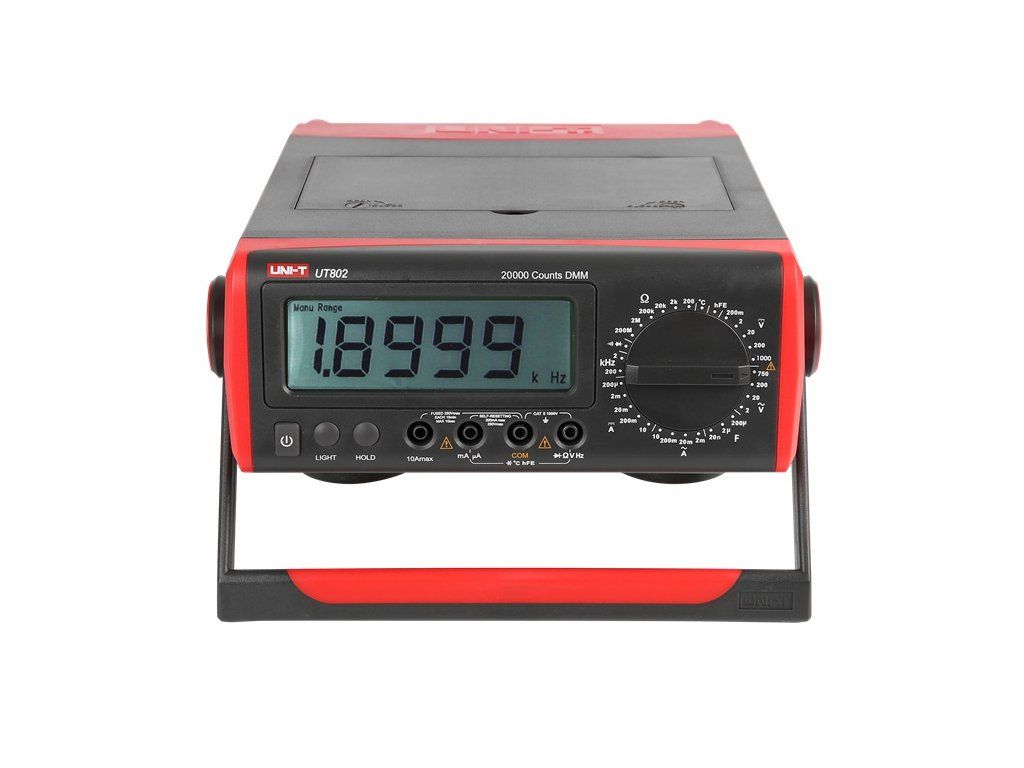

UNI-T UT802 Benchtop Multimeter

Product detailed description

The UT802 benchtop multimeter is a multi-purpose electronic measuring instrument. It meets the needs of measuring electrical parameters in the maintenance of electronic equipment with high accuracy and ease of operation. The advantage is the many functions and the possibility to use it even outside the range of 230V supply voltage, as it also allows battery operation. The instrument has a backlit LCD display with a display value of ±19999. The instrument is manufactured to IEC61010-1 standards and complies with CAT II 1000V category. - Large backlit LCD display measuring 108 x 34.5mm, with a maximum display value of 19999 - Simple and clear operation by manually switching ranges with a single circular switch - Measure AC/DC voltages and currents, resistances, capacitances, frequency and temperature - Semiconductor transient measurements of diodes and transistors - Circuit continuity testing with buzzer - Data Hold function - Powered by 230V AC/DC9V/200mA adapter or 6 x 1.5V; R14 batteries - Storage space for adapter TECHNICAL SPECIFICATIONS: - DC voltage measurement over a range of 200mV to 1000V with ±(0.1%+3) accuracy - AC voltage measurement on ranges: 2V to 750V with accuracy ±(0.5%+20) - DC range current measurement: 200µV to 10A with ±(0.5%+20) accuracy - DC current measurement on ranges: 2mA to 10A with ±(0.8%+40) accuracy - Resistance measurement on ranges: 200Ohm to 200MOhm with ±(0.5%+10) accuracy - Capacitance measurement on ranges: 20nF to 200µF with ±(4%+10) accuracy - Frequency measurements on ranges: 2kHz and 200kHz with ±(1.2%+10) accuracy - Temperature measurements on ranges: -40°C to 1000°C with ±(1.2%+25) accuracy - Input impedance for DC ranges: approx. 10MOhm - Automatic polarity display: yes - Low battery warning: yes - Temperature probe included: type K for temperatures up to +230°C - Operating environment: 0°C to 40°C - Storage environment: -10°C to 50°C - Relative humidity: max. 75% in temperature range 0°C to 30°C; max. 50% in temperature range 30°C to 40°C - Dimensions: 300 x 245 x 105mm - Weight without accessories: 1.5kg - Weight with accessories: 1.65kg - Product colour: red and green PACKAGING CONTENTS: - UT802: 1 piece - Adapter 230V AC/9V DC/200mA: 1 pc - International power adapter reducer: 1 pc - 1,5V R14 battery: 6 pcs - Contact temperature probe type K: 1 pc - Measuring cables: 1 pair - Crocodiles: 1 pair - User manual: 1 pc
