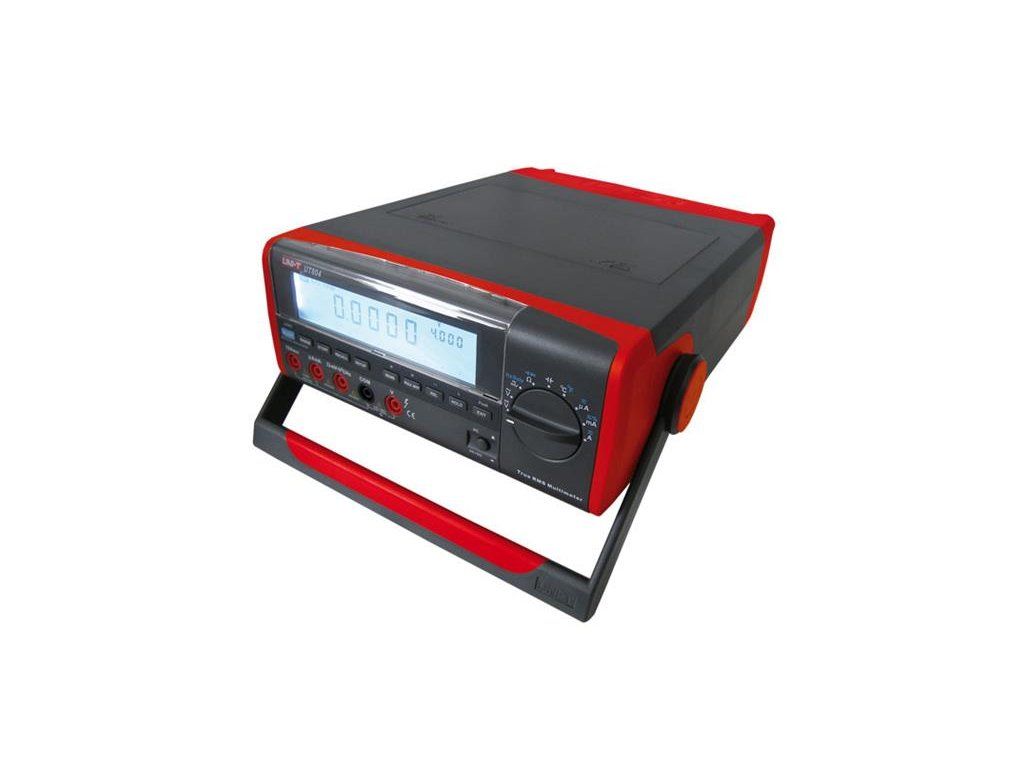

UNI-T UT804 bench multimeter

Product detailed description

UNI-T UT804 bench multimeter
We offer a 3-year warranty on this product. UT804 bench multimeter

- with PC connection (RS232C and USB)
- with automatic range adjustment
- high-end display with analogue bargraph
- practical lockable cable compartment at the top of the unit

SPECIFICATIONS:
DC voltage: 400mV/4V/40V/400V/1000V
- accuracy: +/- (0.025% + 5)
AC voltage: 4V/40V/400V/1000V
- accuracy: +/- (0.4% + 30)
DC current: 400μA/4000μA/40mA/400mA/10A
- accuracy: +/- (0.1% + 15)
AC current: 400μA/4000μA/40mA/400mA/10A
- accuracy: +/- (0.7% + 15)
AC bandwidth: 100kHz
Resistance: 400 Ohm / 4 kOhm / 40 kOhm / 400 kOhm / 4 MOhm / 40 MOhm
- accuracy: +/- (0.3% + 40)
Capacitance: 40nF/400nF/4μF/40μF/400μF/4mF/40mF
- accuracy: +/- (1% + 20)
Temperature: -40 to +1000°C, -40 to +1832°F
- accuracy: +/- 1% + 30 (°C), +/- 1.5% + 50 (°F)
Frequency: 40Hz / 400Hz / 4kHz / 40kHz / 400kHz / 4MHz / 40MHz / 400MHz
- accuracy: +/- (0.01% + 8)
4~20mA Loop: 0 - 100%
- accuracy: +/- (1% + 40)
100% of the time

SPECIAL FEATURES:
Fuse 10A
Range: auto/manual
AC/DC voltage and current measurement
Set Up function
Data Logging
Data Recall
Diode test
Acoustic test
True RMS
Measurement top
MAX / MIN value
REL value
Data Hold
RS323C
USB connection
Icon display
Sleep mode
Battery indicator
Input impedance for DC voltage: 10 MOhm, for 400mV - 4 GOhm
Double display backlight
Max. display 39999 (128 x 28mm)
Bargraf

CHARACTERISTICS:
Power supply: 220V AC / 50Hz or 6x 1.5V bat. R14
Dimensions: 100 x 245 x 300mm
Weight: 2.2kg

Manufacturer
www.uni-t.cz
