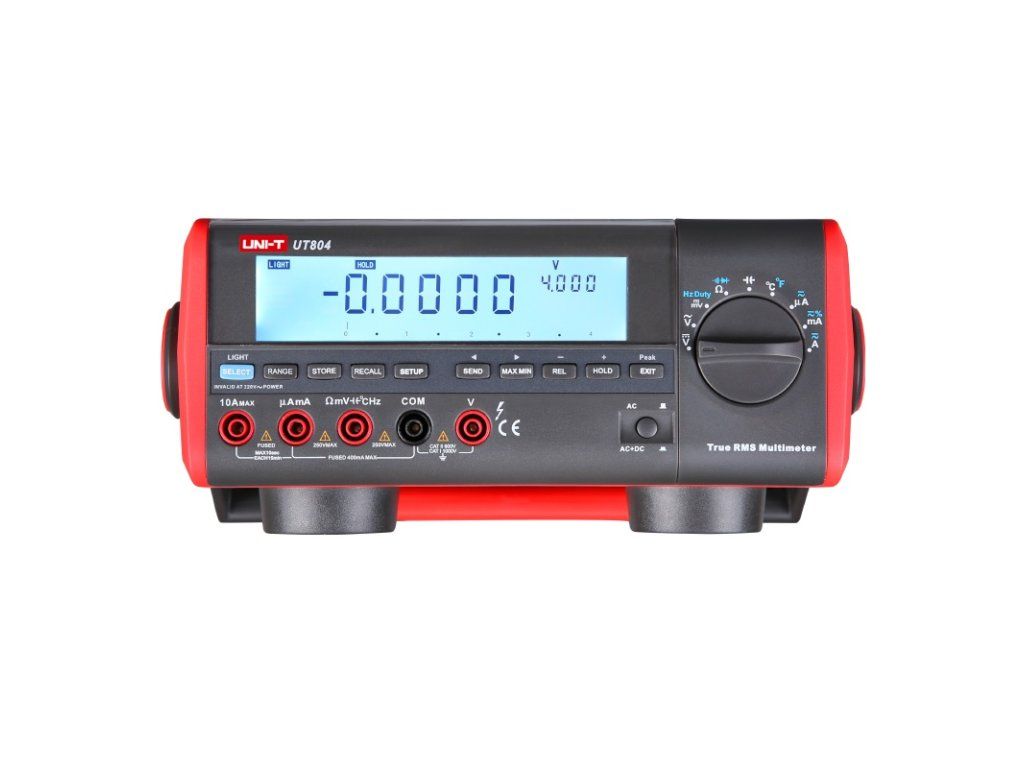

UNI-T UT804 Benchtop Multimeter

Product detailed description

UNI-T UT804 Digital Desktop Multimeter - with PC connection (RS232C and USB) - with automatic range adjustment - high-end display with analogue bargraph - practical lockable cable compartment at the top of the instrument TECHNICAL SPECIFICATIONS: - DC voltage: 400mV / 4V / 40V / 400V / 1000V - Accuracy: +/- (0.025%+5) - AC Voltage: 4V / 40V / 400V / 1000V - Accuracy: +/- (0.4%+30) - DC Current: 400µA / 4000µA / 40mA / 400mA / 10A - Accuracy: +/- (0.1%+15) - AC current: 400µA / 4000µA / 40mA / 400mA / 10A - accuracy: +/- (0.7%+15) - AC bandwidth: 100kHz - Resistance: 400Ohm / 4kOhm / 40kOhm / 400kOhm / 4MOhm / 40MOhm - Accuracy: +/- (0.3%+40) - Capacitance: 40nF / 400nF / 4µF / 40µF / 400µF / 4mF / 40mF - Accuracy: +/- (1%+20) - Temperature: -40 to +1000°C, -40 to +1832°F - Accuracy: +/- 1%+30 (°C), +/- 1.5%+50 (°F) - Frequency: 40Hz / 400Hz / 4kHz / 40kHz / 400kHz / 4MHz / 40MHz / 400MHz - Accuracy: +/- (0.01%+8) - 4~20mA Loop: 0 - 100% - Accuracy: +/- (1%+40) - Grade: 100% - 10A fuse - Range: Auto/manual - AC/DC voltage and current measurement - Set Up function - Data Logging - Data Recall - Diode Test - Acoustic Test - True RMS - Peak measurement - MAX/MIN value - REL value - Data Hold - RS323C - USB connection - Icon display - Sleep mode - Battery indicator - Input impedance for DC voltage: 10 MOhm, for 400mV - 4 GOhm - Display backlight double - Max. display 39999 (128 x 28mm) - Bargraph - Power supply: 220V AC / 50Hz or 6x 1.5V battery. R14 - Dimensions: 100 x 245 x 300mm - Weight: 2.2kg
