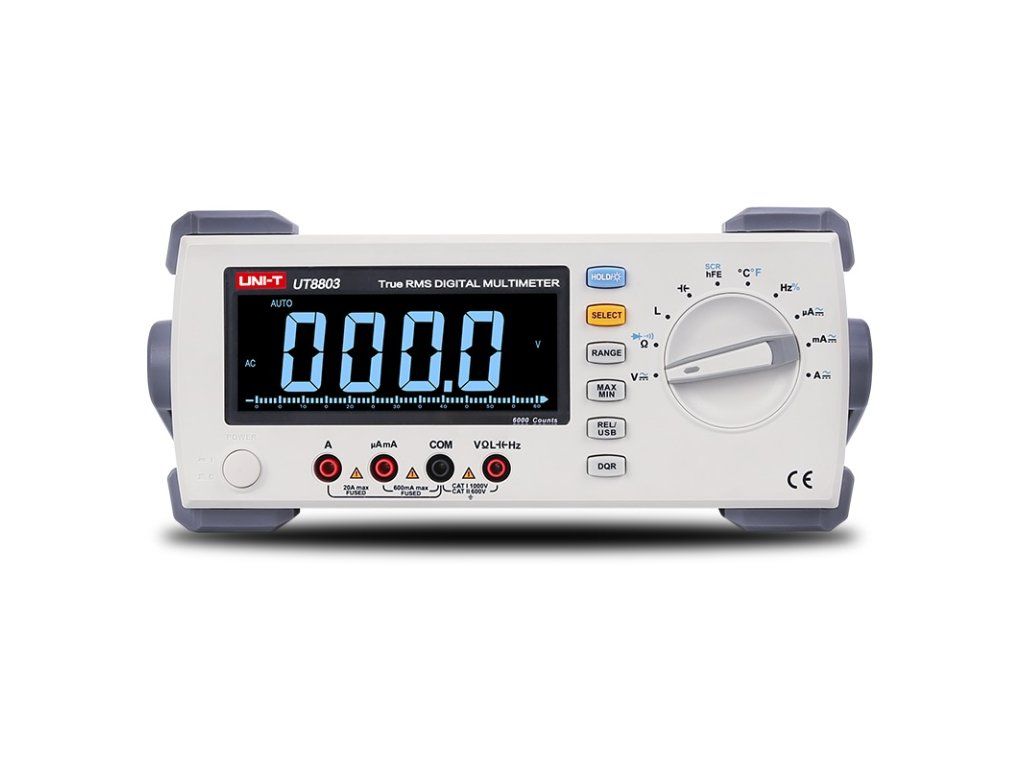

UNI-T UT8803E Benchtop Multimeter

Product detailed description

The UT8803 is a benchtop multimeter with manual range selection, a display value up to 5,999, a large backlit LCD display, full range overload protection and a unique design. The instrument can be used to measure AC and DC voltage, AC and DC current, resistance, frequency, capacitance, hFE, diodes (LEDs), SCR, line continuity, etc. TECHNICAL SPECIFICATIONS: - DC voltage: 600mV / 6V / 60V / 600V / 1000V - Accuracy: +/- (0.3%+2) - AC Voltage: 600mV / 6V / 60V / 600V / 750V - Accuracy: +/- (0.6%+5) - DC Current: 600µA / 6mA / 60mA / 600mA / 20A - Accuracy: +/- (0.8%+3) - AC current: 600µA / 6mA / 60mA / 600mA / 20A - accuracy: +/- (1%+5) - Resistance: 600Ohm / 6kOhm / 60kOhm / 600kOhm / 6MOhm / 60MOhm - Accuracy: +/- (1%+5) - Capacitance: 6mF / 60nF / 6µF / 60µF / 600µF / 6mF - Accuracy: +/- (1.5%+5) - Inductance: 600µH / 6mH / 60mH / 600mH / 6H / 60H / 100H - Accuracy: +/- (2%+5) - ACR: 60Ohm / 600Ohm / 6kOhm / 60kOhm / 600kOhm / 6MOhm - Accuracy: +/- (1%+5) - Frequency: 600Hz~20MHz - Accuracy: +/- (1%+5) - Grade: 10Hz~10kHz / 0.1% / ±(1.5%+2) - Temperature: -40+1000°C ±(2%+2°C) using a Type K thermocouple - Display: EBTN LCD (6000) - USB interface for connection - Range: auto - True RMS - Diode Test: 9.0V / 1mV / ±(10%) - Frequency response: 100kHz - SCR test: 9.0V / 1mV / ±(10%) - Acoustic conductivity test (ringing) - Data Hold - MAX/MIN value - LCD backlight - Input impedance for DC voltage: 600mV range: about 3GOhm; all other ranges: about 10MOhm - Power supply: 230V AC/50Hz - Weight: 3.09 kg - Dimensions: 265 x 110 x 320mm PACKAGE CONTENTS: - Measuring instrument - USB interface cable - Power cable - Simple test cable with alligator clips - Standard measuring cables - PC software CD - Temperature probe
