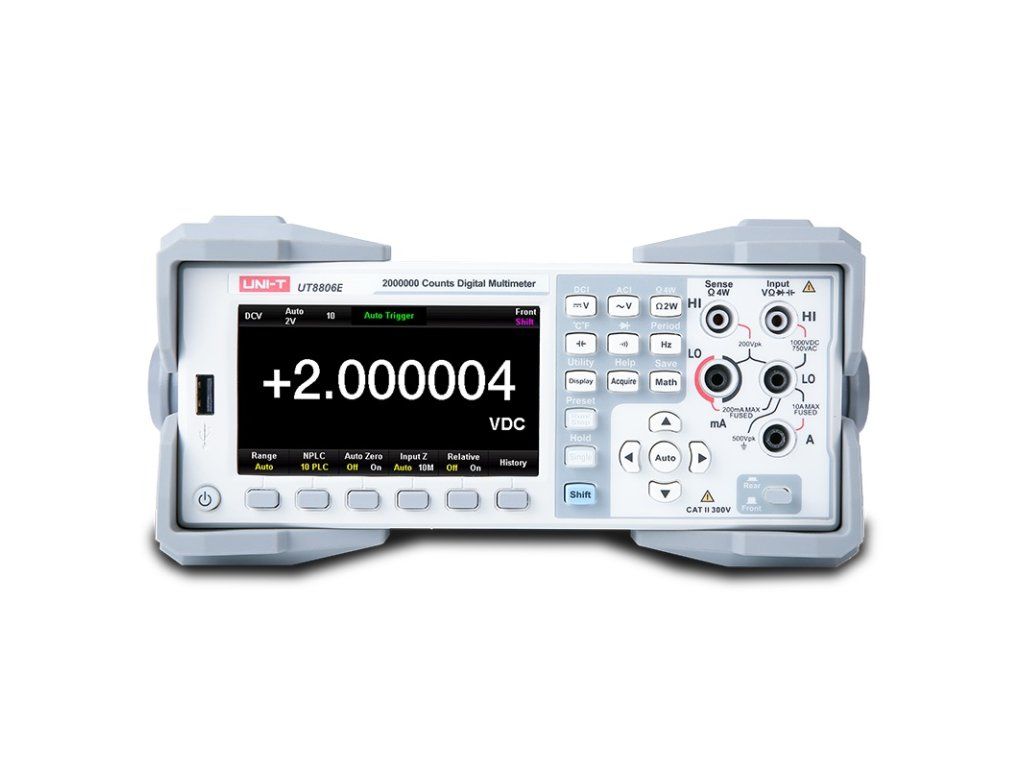

UNI-T UT8806E Benchtop Multimeter

Product detailed description

The UT8806E is a desktop digital multimeter with a maximum display value of 2,000,000 with automatic or optional manual range adjustment, color display and true RMS measurement function. It features high accuracy, multi-functionality and full automation. The UT8806E features a 4.3-inch TFT display with 480 x 272 resolution, supports LAN, USB, RS-232C and GPIB (optional) operation, and is suitable for high-precision measurements in laboratories and automated test systems, inspection and maintenance development. The UT8806E multimeter comes with software that you can use to record data and plot it on a graph. This software is also available on the UNI-T website. Product parameters: - display type: TFT-LCD with 4.3" diagonal - number of display digits: 6.5 digits 2,000,000, provides high quality and accurate measurement - Backlight: yes - True RMS: : True RMS measurement - bargraph - graphical user interface, easy and convenient operation - multiple help system for easy access to information - dual window display function - supports USB and local storage for file management - mathematical functions for easy data analysis such as min/max/average, standard deviation, bar graph, histogram and more. - measurements: capacitance, frequency, AC+DC voltage, AC+DC current, resistance, resistance (four-wire), resistance (two-wire), temperature, gauge. circuit Technical parameters: DC voltage measurement: 200mV/2V/20V/200V/1000V DC voltage measurement accuracy: ±(0.0015% + 0.0004% range), ±(0.002% + 0.0003% range), ±(0.002% + 0.0005% range), ±(0.002% + 0.0015% range) DC current measurement: 2µA / 20µA / 0.2mA / 2mA / 20mA / 200mA / 2A / 10A DC current measurement accuracy: ±(0.006% + 0.008% range), ±(0.007% + 0.001% range), ±(0.009% + 0.001% range), ±(0.009% + 0.002% range), ±(0.009% + 0.01% range), ±(0.045% + 0.015% range) AC voltage measurement: 200mV/2V/20V/200V/750V AC voltage measurement accuracy: ±(0.04% + 0.02% range), ±(0.1% + 0.04% range), ±(0.35% + 0.02% range), ±(0.55% + 0.08% range), ±(1% + 0.02% range), ±(4% + 0.5% range) AC current measurement: 200µA / 2mA / 20mA / 200mA / 2A / 10A Resistance measurement range: 20? / 200? / 2k? / 20k? / 200k? / 2M? / 10M? / 100M? / 1G? Capacitance measurement range: 2nF/20nF/200nF/2mF/20mF/100mF Capacitance measurement accuracy: ±(0.9%+ 0.1% range), ±(1.8%+ 2.4% range), ±(2.8%+ 0.1% range) Frequency measurement range: 3Hz to 1MHz Frequency measurement accuracy: ±(0.1%+0.04% range), ±(1%+0.04% range) Diode test: 0 to 4V Measurement: capacitance, frequency, AC voltage, DC voltage, resistance, resistance (four-wire), resistance (two-wire), AC current, DC current, pass. circuit Temperature measurement: supports thermocouples and thermal resistance sensors Temperature: -270 °C to 1760 °C Dimensions: 215 x 88 x 391 mm Weight: 3.4 kg Package contents: - Desktop multimeter: - power cord - measuring cables - uSB cable - RS-232 cable
