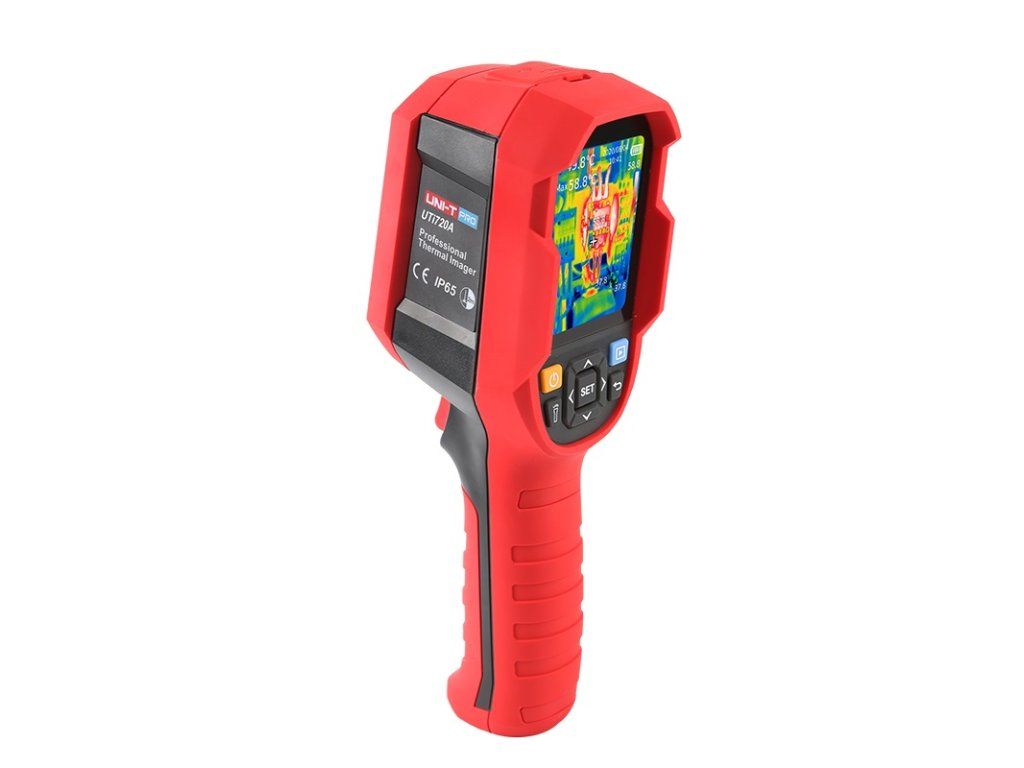

UNI-T UTi720A thermal imager

Product detailed description

This product comes with a 3-year warranty. The highly durable UTi720A is a high-end camera with a quality construction operating in the infrared range, designed to measure the surface temperature of objects from -20°C to +400°C. With a 2.8" display, the UTi720A's high-resolution infrared light helps users easily identify temperature anomalies. It also features a high-brightness LED light, is IP65 certified, and resists drops from a height of 2 meters. It can be equipped with UT-Z002 macro lens (optional), the recommended distance is 4 cm. The UTi720A thermal imaging camera finds wide application in the construction industry when looking for heat leaks from masonry, roofs or pipes, in the energy industry when identifying faults in electrical installations. in refrigerated warehouses, in service stations when searching for overloaded equipment and in scientific research. Product parameters : - 2.8" TFT display (320 x 240 pixels) - IR resolution : 256×192 - temperature measurement range from -20°C to 400°C - automatic high/low temperature alarm - automatic hot/cold spot monitoring - on-screen analyzer: 3 points - LED flashlight - pC software analysis and real-time image projection - rechargeable lithium-ion battery - 1/4" hole for tripod mounting - iP65 protection - 2 m drop resistance Technical parameters : - 2.8" TFT display (320 x 240) - infrared resolution: 256 x 192 pixels - field of view (FOV): 56°(H) x 42.2°(E) - thermal sensitivity (NETD): less than or equal to 50mK - spatial resolution (IFOV): 3.8 mrad - frame rate: less than or equal to 25 Hz - infrared spectral band measurement: 8 µm to 14 µm - focus mode: Focus Free - temperature measurement range: -20°C to 400°C - accuracy ±2°C or ±2%, whichever is greater - emissivity 0.01~1.00 adjustable (default value 0.95) - thermal image transposition color palette: 7 (White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC) - image modes: thermal - object temperature analysis: 3 points - LCD high/low temperature alarm animation, LED flashlight - pC software analysis - power supply: Li-ion battery 3.6V, 5000 mAh - operating time greater than or equal to 7 hours - USB type - C - iP65 protection - 2 m drop resistance - storage: Micro SD card up to 32 GB - image/video storage format: BMP - certification: : CE, FCC, RoHS - weight: 490 g - product dimensions (l x w x h): 236 x 75.5 x 86 mm Package contents : - thermal imager UTi720A - micro SD card - uSB Type-C cable, - user manual
