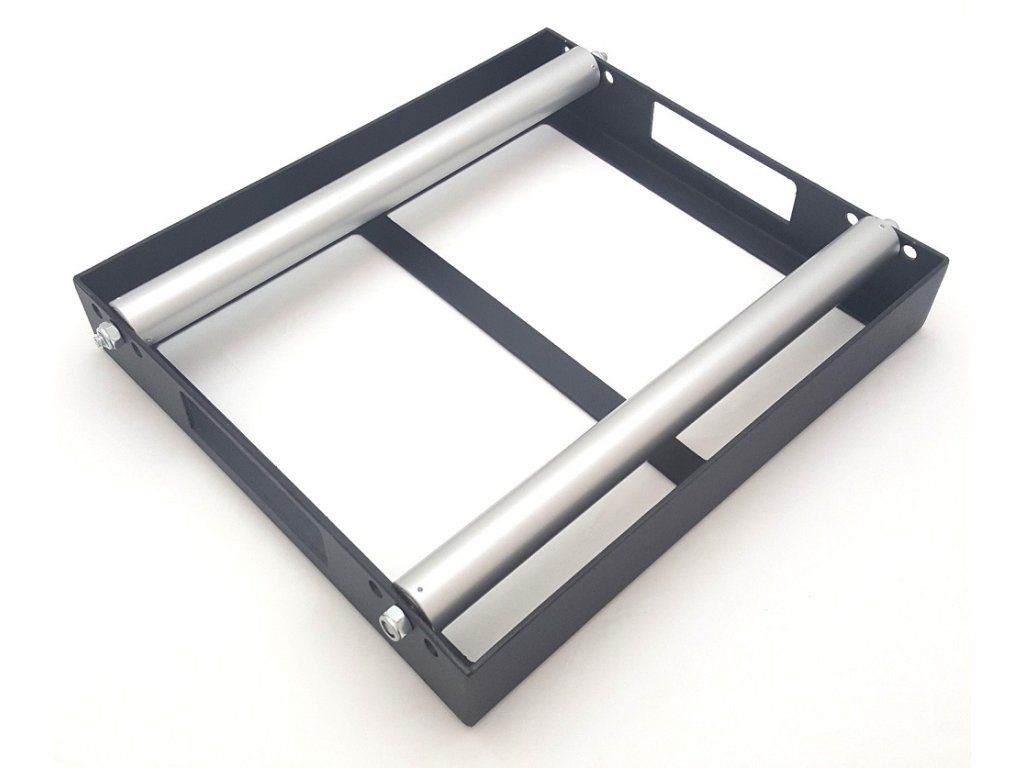

Universal uncoiler for small cable spools up to 325 mm spool width, load capacity 200 kg

Product detailed description

Universal small cable reel uncoiler primarily designed for uncoiling fiber optic, metallic and coaxial cables. The uncoiler can also be used for other products supplied on spools (chains, ropes, tubes, etc.). Limitations are the width and diameter of the spool and the total weight of the spool with cable. With the help of a connection set and 2 unwinders, it is possible to unwind spools up to 90 cm wide and weighing up to 400 kg. Technical parameters: Maximum coil width when using 1 unwinding kit:: 32,5 cm Maximum coil width when using 2 unwinders:: 90.0 cm Maximum spool diameter: 120 cm Maximum coil weight with cable: 200 kg / 1 unwinding unit Dimensions: 33.5 x 30 x 5.5 cm Weight of unwind: 2.8 kg Adjustable reel positions: 3 - when using 2 unwinders and a coupler, cables on wider spools can be unwound - saves time (and thus money) during installation - three adjustable reel positions
