USB adapter iPEAX GaN USB/USB-C 90010125 Black

Product detailed description

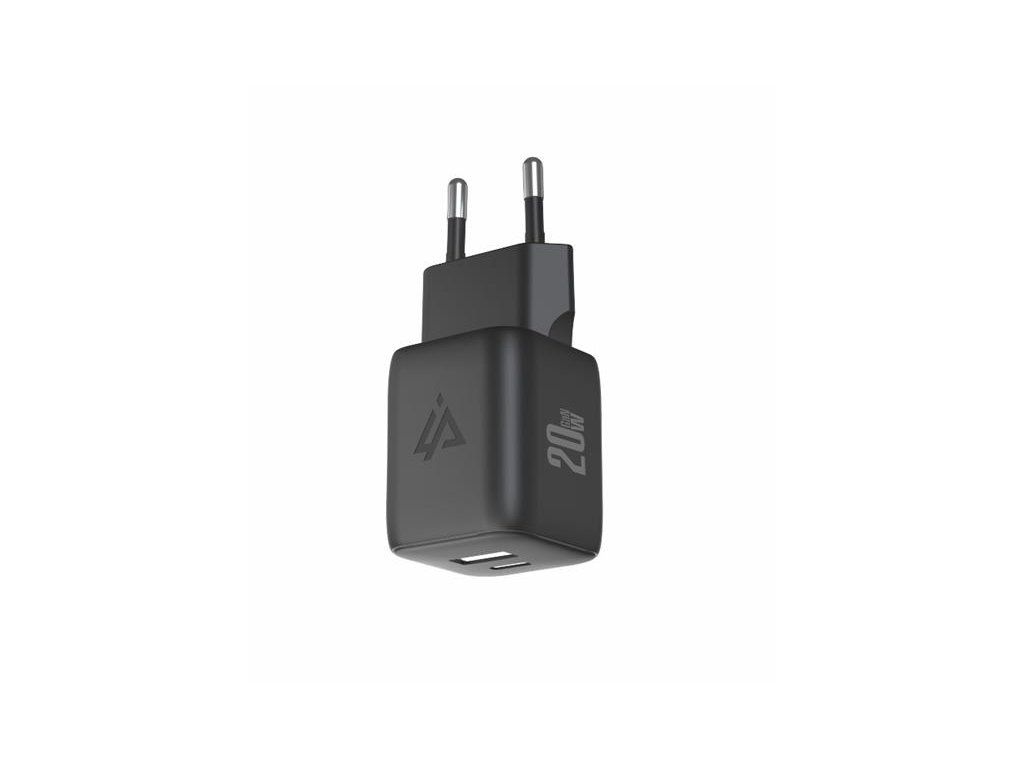

IPEAX GaN 20W WIDTH CHARGER (USB-C + USB-A) BLACK

Miniature charger with maximum power
The iPEAX mains charger with GaN technology provides powerful and efficient charging in an extremely compact design. With two ports - USB-C with PD and PPS support and USB-A with QC 3.0 - you can easily and quickly charge your mobile devices at home or on the go.

Fast charging in pocket format
The USB-C output offers up to 20W of power, making it ideal for modern smartphones. The USB-A port supports Quick Charge 3.0 fast charging with up to 18W of power. When both outputs are used simultaneously, power is intelligently shared (up to 15 W).

GaN technology for higher efficiency and smaller footprint
USB-C PD/PPS up to 20 W, USB-A QC 3.0 up to 18 W
15 W of shared power when using both ports
Compact size: 33 × 33 × 39 mm
Suitable for travel

Specifications:

Input: 100-240 V AC, 0.5 A, 50/60 Hz
Outputs:
USB-C: 5.0 V 3.0 A, 9.0 V 2.22 A, 12.0 V 1.67 A / Max. 20 W
PPS1: 3.3-5.9V DC 3.0A / Max. 17,7W
PPS2: 3.3-11 V DC 1.8 A / max. 19.8 W
USB-A QC 3.0: 5V 3A, 9V 2A, 12V 1.5A / Max. 18W
USB-C + USB-A: 15W shared power
Dimensions: 33 × 33 × 39 mm
