USB Adapter iPEAX GaN USB/USB-C 90010131 White

Product detailed description

Compact and efficient next-generation charger

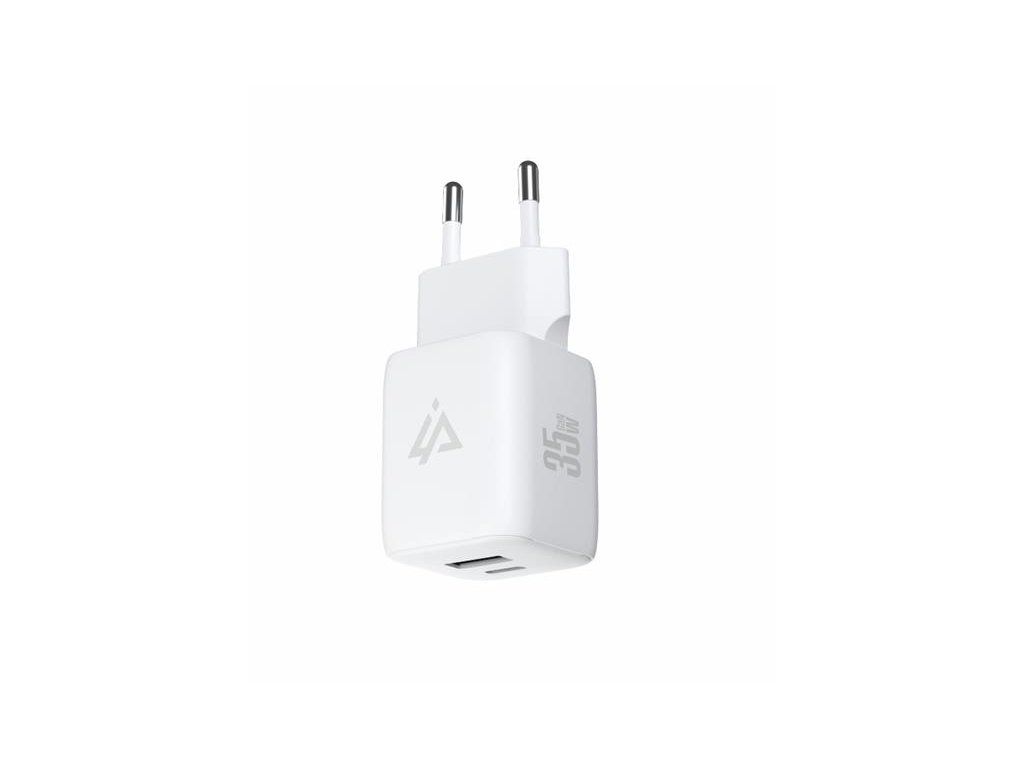

The 35W iPEAX mains charger uses advanced GaN technology to achieve high performance in a minimal footprint. It offers both USB-C with Power Delivery and PPS support and USB-A with QC 4.0 fast charging, making it the ideal choice for most modern devices.

Fast and universal charging for all devices
The USB-C port can handle up to 35W and also supports dynamic charging via PPS, while USB-A provides up to 27W thanks to Quick Charge 4.0. When using both ports at the same time, power is intelligently shared (15 W shared). The charger is suitable for smartphones, tablets, wireless headphones and power banks.

GaN technology for higher performance and smaller size
USB output up to 35 W (PD + PPS), USB up to 27 W (QC 4.0)
Total shared power when dual charging 15 W
Compact body: only 32.3 × 32.3 × 38.3 mm
Support wide input voltage (100-240V AC)

Technical parameters:

Input: 100-240V AC, 1.0A, 50/60Hz
Outputs:
USB-C: 5V DC 3A, 9.0V DC 3A, 12V DC 2.92A, 15V DC 2.33A, 20V DC 1.75A / max 35W
PPS1: 3.3-11V DC 3.0A / max. 33W
PPS2: 3.3-16V DC 2.0A / max. 32W
USB-A QC 4.0: 5V DC 3A, 9V DC 3A, 12V DC 2.25A, 20V DC 1.35A / max. 27W
USB-C + USB-A: 15W shared
Dimensions: 32.3 × 32.3 × 38.3 mm
