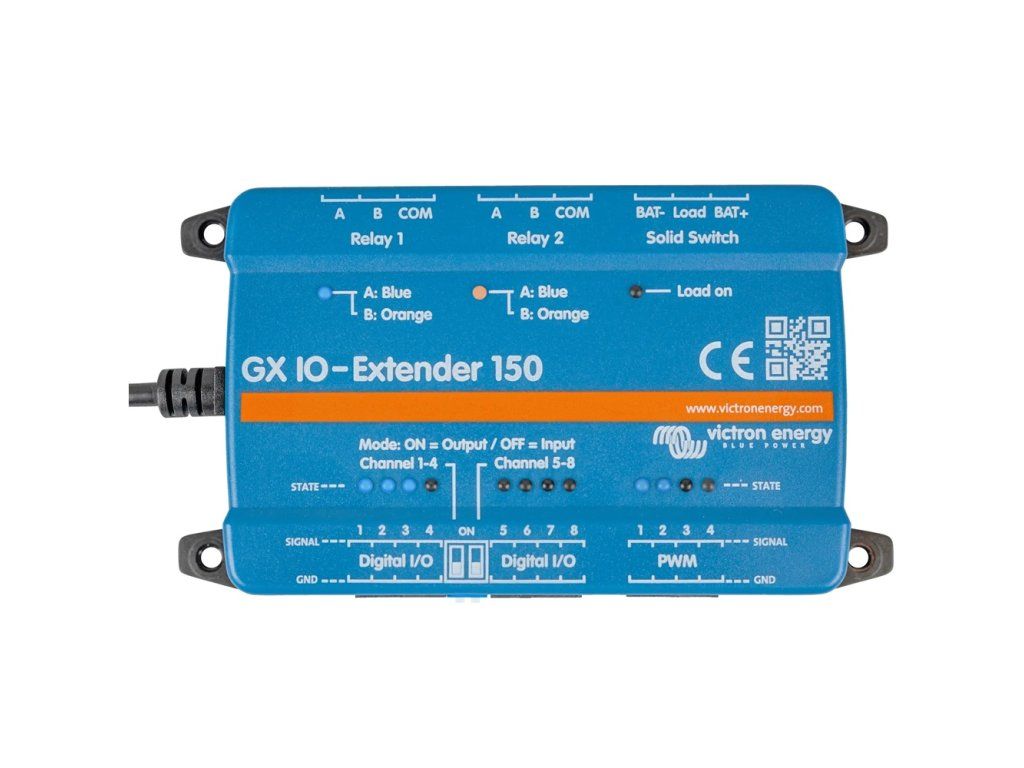

Victron Energy GX IO-Extender 150

Product detailed description

The Victron Energy GX IO-Extender 150 is an intelligent expansion module designed to expand the input and output capabilities of GX devices. It connects via USB, which also provides power, and provides an easy way to integrate additional sensors, switches and controls. The module can be configured via Node-RED directly in the GX device or via switches in the Switch strip of the user interface. Main features and functions: - 8 digital I/O: Each I/O is optionally configurable as input or output (including LED status indication). - PWM outputs: 4 channels for precision control with 5 V and 8 bit resolution at 1.5625 kHz. - Two bistable relays - for AC: 0.5 A at 250 V AC (125 VA), for DC: 0.3 A at 220 V DC (90 W). - Solid State Relay (SSR): For fast switching of DC loads and support of resistive, capacitive and inductive loads. - Pluggable spring terminals: Allow for fast and reliable wire installation. - Completely isolated circuits from USB for maximum connection safety. Specifications: - USB power supply (5 V, max. 200 mA) - Power consumption: < 100 mW (idle), max. 1 W - Digital I/O: 8x, 3.8-5.5 V (input), 5 V / 4 mA (output) - PWM outputs: 4 channels, 5 V, 8 bits @ 1.5625 kHz - Latching relay: 2x, DC: 3 A @ 30 V, AC: 2 A @ 60 V - Solid State Relay (SSR): max. 70 VDC, 4 A, max. capacitive load 1000 µF (up to 15 V), inductive load up to 1000 mH - Wall or DIN rail mounting (with accessories) - Dimensions: 123 x 67 x 23 mm - Weight: 0.17 kg - Operating temperature: -20 °C to +50 °C
