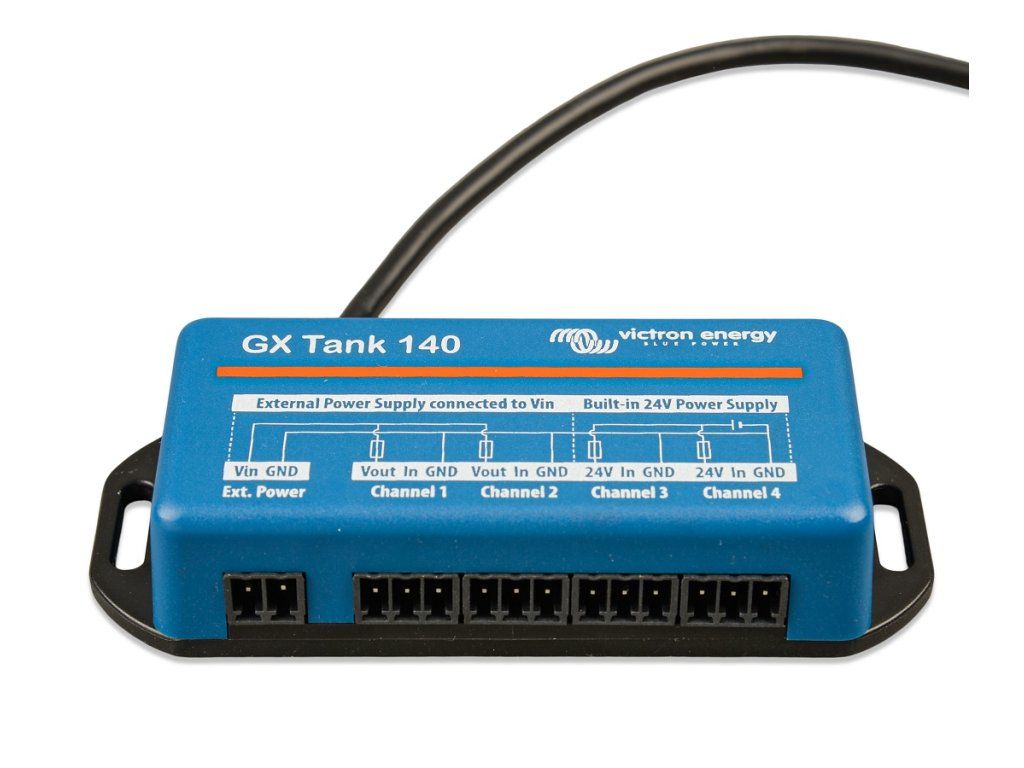

Victron Energy GX Tank 140

Product detailed description

The GX Tank 140 takes readings from up to four tank level sensors. This is an accessory that is designed for our GX line of system monitoring products, of which the Cerbo GX is the most commonly used model. The tank level can be read locally on the system, see screenshot, or remotely via our VRM Portal. The GX Tank 140 is compatible with both current transmitters (4 to 20 mA) and voltage status transmitters (0 to 10 V). Connection to the GX device is via USB, which is also how the GX Tank is powered: no additional cabling is required. The tank's transmitter wiring is designed to be as simple as possible: two of the four inputs provide 24 V power for the transmitter. The other two channels require an external power supply and are equipped with fuse-protected terminals to make this easy. Upper and lower limits are configurable to allow the use of transmitters that provide only a portion of the scale, such as 0 to 5 V. To ensure a stable reading, the readings are averaged by damping. The damping can be set between 1 and 60 seconds. Faulty sensors and wiring problems have been detected: an alert is activated when readings are out of range. For marine applications, the GX can transmit these tank level readings over the NMEA 2000 network so that other displays, such as MFDs, can capture them.
