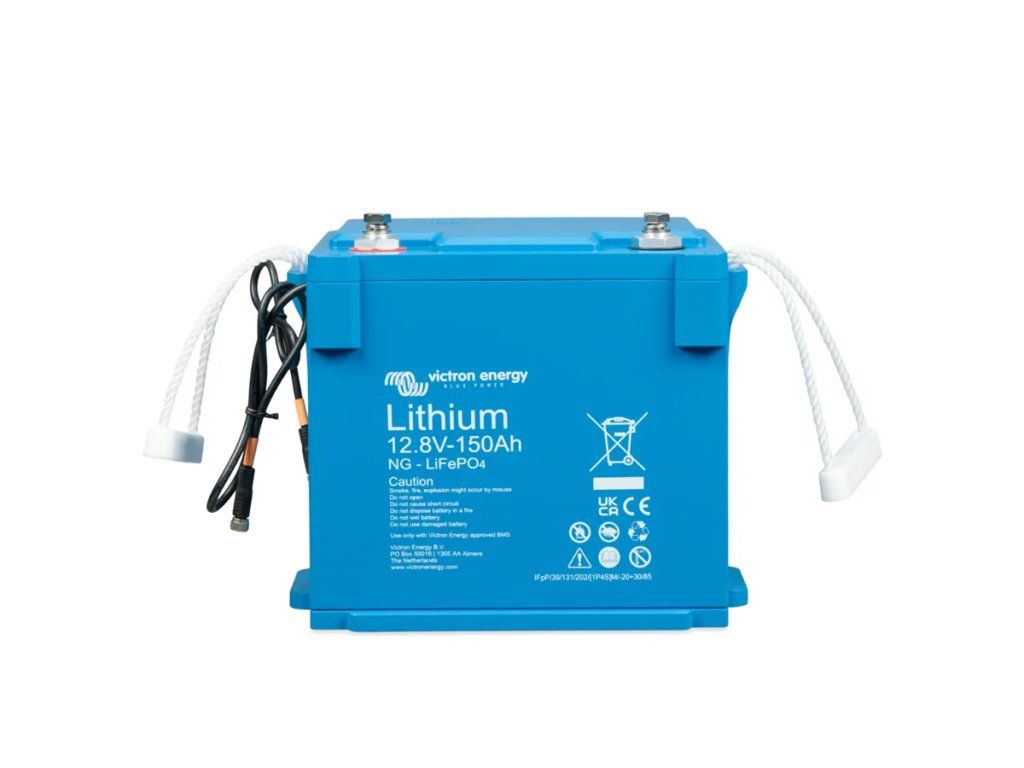

Victron Energy LiFePO4 battery 12,8V/150Ah NG

Product detailed description

The Victron Energy Lithium NG battery is a new generation of lithium iron phosphate (LiFePO4 or LFP) batteries with nominal voltages of 12.8 V, 25.6 V and 51.2 V. They can be connected in series, parallel or series-parallel to build a battery system for system voltages of 12 V, 24 V or 48 V. The maximum number of batteries in a single system is 50, and the maximum storage capacity can be 192 kWh for 12 V and up to 384 kWh for 24 V and 48 V systems. Use of an external BMS is required. BMS to be purchased separately. Changes from previous generation: - Added measurement of voltage and temperature data for individual cells - Maximum storage size increased up to 385 kWh - Available for 12, 24 and 48V voltages - Protection class IP65 - Mounting bracket, strap mount available - Self-discharge rate max 2% per month Main features: Integrated shunt Battery data (battery voltage, current and temperature) is transmitted to the BMS and evaluated to calculate the state of charge, which can be monitored by VictronConnect or GX devices or used for specific warnings and alarms. Automatic setup, monitoring and control via VictronConnect or GX devices and the VRM portal All battery parameters are managed by the BMS, which automatically detects system voltage and battery count in parallel, series and series-parallel connections. NG batteries have integrated cell balancing and cell monitoring. Cables for cell balancing/monitoring can be connected in series and must be connected to the battery management system (BMS). Monitoring and control of the battery system is via the VictronConnect app (each BMS model has Bluetooth), the GX Communication Center or the VRM Portal. You can view battery parameters such as cell status, cell voltage, battery current and temperatures in real time. The battery firmware is automatically updated via the BMS. Easy mounting with bracket Mounting brackets make installation easy and ensure optimal securing of the battery against movement and tipping. Increased protection against dust and liquid ingress (IP) Lithium NG batteries are effectively sealed against dust and can withstand low-pressure water jets. Low self-discharge rate The self-discharge rate has been significantly improved over the previous generation and is no more than 2% of the battery capacity per month. The BMS is purchased separately. Parameters: - Rated voltage: 12.8V - Rated capacity at 25 °C: 150 Ah - Nominal energy at 25 °C: 1920 Wh - Cyclic life (capacity greater than or equal to 80% of nominal): 80% DoD 2500 cycles, 70% DoD 3000 cycles, 50% DoD 5000 cycles - Maximum continuous discharge current: 150 A - Maximum short-term discharge current (10s): 300 A - Maximum continuous charging current: 150 A - Maximum short-term charging current (10s): 225 A - Operating temperature: Discharge: -20 °C to +50 °C, Charge: +5 °C to +50 °C - Protection class: IP65 - Dimensions (HxWxD): 205 x 250 x 205 mm - Weight: 14 kg
