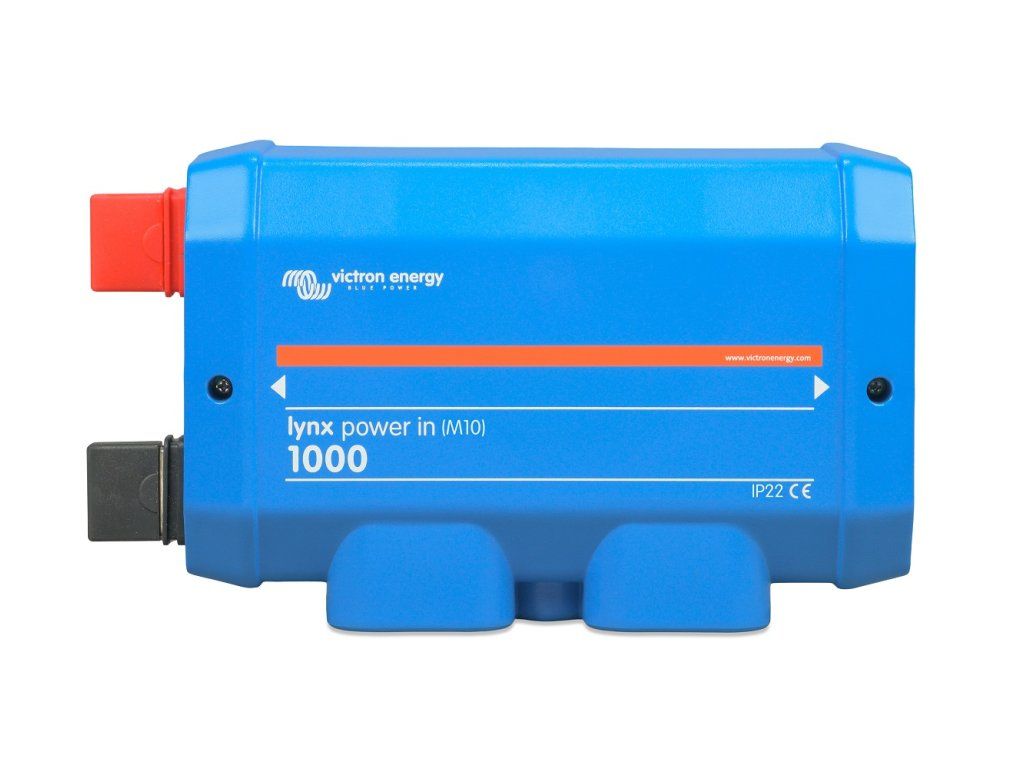

Victron Energy Lynx Power In (M10)

Product detailed description

Modular busbar for connecting batteries to the Lynx Distributor modular fuse unit. The Lynx Power In module is used to connect the batteries via an external fuse. This can be useful if you need to connect multiple batteries in parallel. Due to the extremely high short-circuit current in most battery banks, it is recommended to use an external fuse system with an appropriate fault current equipment rating (such as NH HRC). The Lynx Power In module includes a negative and positive busbar with M10 screws to connect the battery cables. Specifications: DC 9-60 V voltage range Rated current: 1000 A Connection: M10, 8 x 30 mm (tinned copper) Protection: IP22, ABS plastic cover Dimensions: 285 x 169 x 78 mm Weight: 2.3 kg Operating temperature: -40 to +60 °C
