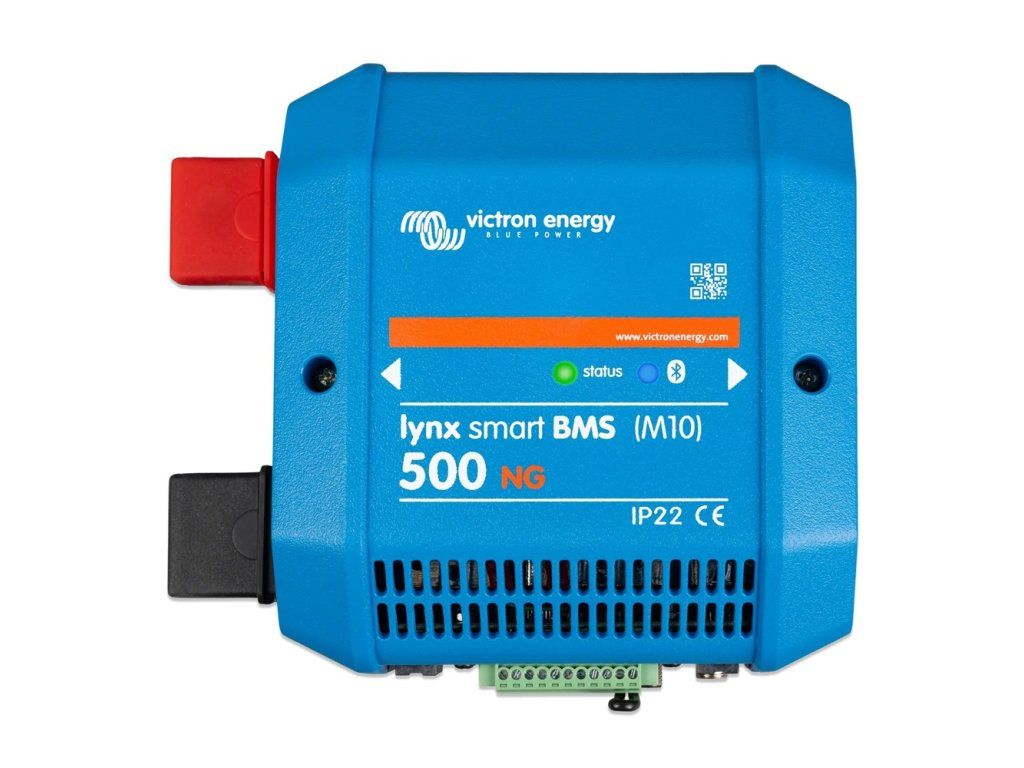

Victron Energy Lynx Smart BMS 500 NG (M10)

Product detailed description

Lynx Smart BMS 500 NG is an advanced battery management system specifically designed for Victron Energy Lithium NG batteries (not to be confused with Lynx Smart BMS, which is designed for Victron Lithium Battery Smart batteries). This robust BMS system ensures trouble-free performance, optimal safety and efficient monitoring of Lithium NG batteries, which are available in 12.8V, 25.6V and 51.2V nominal voltages and various capacities. Lynx Smart BMS NG is a reliable, safe and user-friendly solution. The battery systems can be configured in series, parallel or a combination of both and support 12 V, 24 V and 48 V systems. Each system can accommodate up to 50 batteries, offering up to 192 kWh (12 V) or 384 kWh (24 V/48 V) of stored energy. By connecting multiple Lynx Smart BMS units in parallel, you can expand capacity and provide redundancy. Several BMS (battery management systems) are available for the Smart Lithium NG range. The Lynx Smart is the richest and most complete option. Main features: - Built-in 500 A contactor, used as a backup safety mechanism and also available as a remote-controlled main switch. - Battery status monitoring, displays charge percentage and other data. - Prealarm: provides a warning before the system shuts down due to, for example, low cell voltage. - Bluetooth to use the device with our VictronConnect app to set up and monitor the system. - Local and remote monitoring using Victron GX devices such as Cerbo GX. The Lynx Smart BMS NG is part of the Lynx modular DC distribution system
