Victron Energy panel battery indicator with M8 mesh for BlueSmart IP65 chargers

Product detailed description

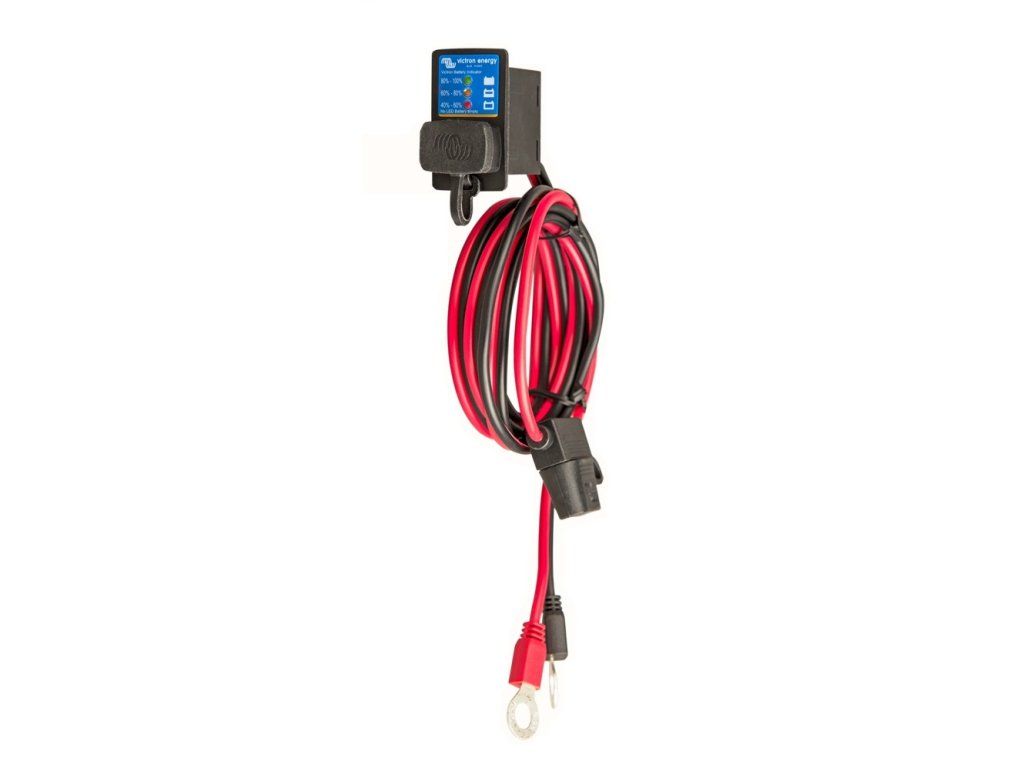

The battery status indicator panel shows the current battery status. It is an accessory for Blue Smart and Blue Power IP65 chargers. It is only suitable for 12V (not 24V) lead acid batteries (flooded, GEL, AGM). Easy to use Once the battery is discharged, it takes approximately 30 minutes for the battery to reach steady state and the panel to display the correct state value. - green light: the battery does not need to be charged. Battery 80%-100% - amber light: the battery can be charged. Battery 60%-80% - red light: battery needs charging. Battery 40%-60% - no light: charge batteries immediately to prevent sulfation. Batteries <40% Technical parameters: Voltage: 6-15V Maximum current: 30A Cable length: 1.5m (0.3ft) Size: 45x26x50mm Weight: 0.17kg Protection Class: IP65 Eyelets: M8
