Voltage detector UNI-T UT12M-EU PRO Line

Product detailed description

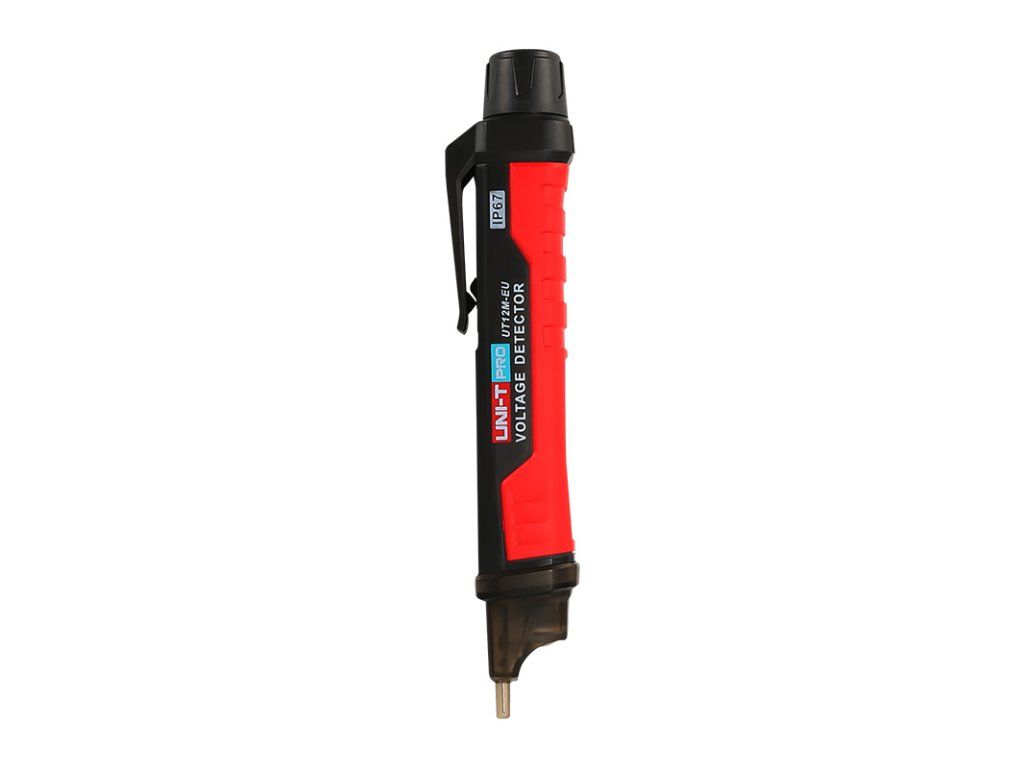

This product comes with a 3-year warranty. UT12M-EU is a professional non-contact AC voltage detector with built-in flashlight and acousto-optic synchronous warning function. In low voltage mode, it is suitable for testing low voltage motors (<90V), audio systems, arc welding machines, underground mine lighting, cables with thick insulation layer and other weak electromagnetic equipment. In high-voltage mode, it can be used for testing power distribution systems in the range (90~1000V), electrical panels, electrical appliances, three-phase systems. It is widely used in the maintenance of low-voltage equipment such as wires, cables, sockets and other electrical/electronic devices. It is a very useful tool for electricians. Just place the sensor head near the object under test or AC voltage outlet. When AC voltage is detected, the red or green LED on the tip will light up and a buzzer will sound. The frequency of the buzzer and detection LED increases as the detector gets closer to the test object. Allows detection of weak magnetic fields near electromagnetic relays, solenoids, coils, etc. Product parameters : - non-contact detection of AC mains voltage - indication of the presence of voltage by sound signal and flashing LED - magnetic field detection - automatic switching off in case of inactivity - flashlight with white light - resistance to falling from a height of 2 m - iP67 dust and water resistance Technical parameters : - low voltage measuring range : 24 ~ 1000 V AC (green light) - high voltage measuring range : 90 ~ 1000 V AC (red indicator light) - frequency : 50/60 Hz - voltage indication : audio / visual - automatic shutdown : approx. 5 minutes - low battery warning : YES - vibration function : NO - magnetic field detection mode : YES (yellow light on) - working temperature : 0 - 40°C - storage temperature : -20°C - 50°C - relative humidity : ?80% (non-condensing) - drop resistance : 2 m - protection : IP67 - safety class : CAT IV 1000V - battery : 2x 1.5V AAA (R03) - dimensions : 160,5 x 21,5 x 25 mm - weight : approx. 72g Contents of individual packing : - blister with UT12E-EU detector - 1.5V AAA batteries (R03) : 2 pcs - instructions for use
