Voltcraft VC-5080 Analog Multimeter

Product detailed description

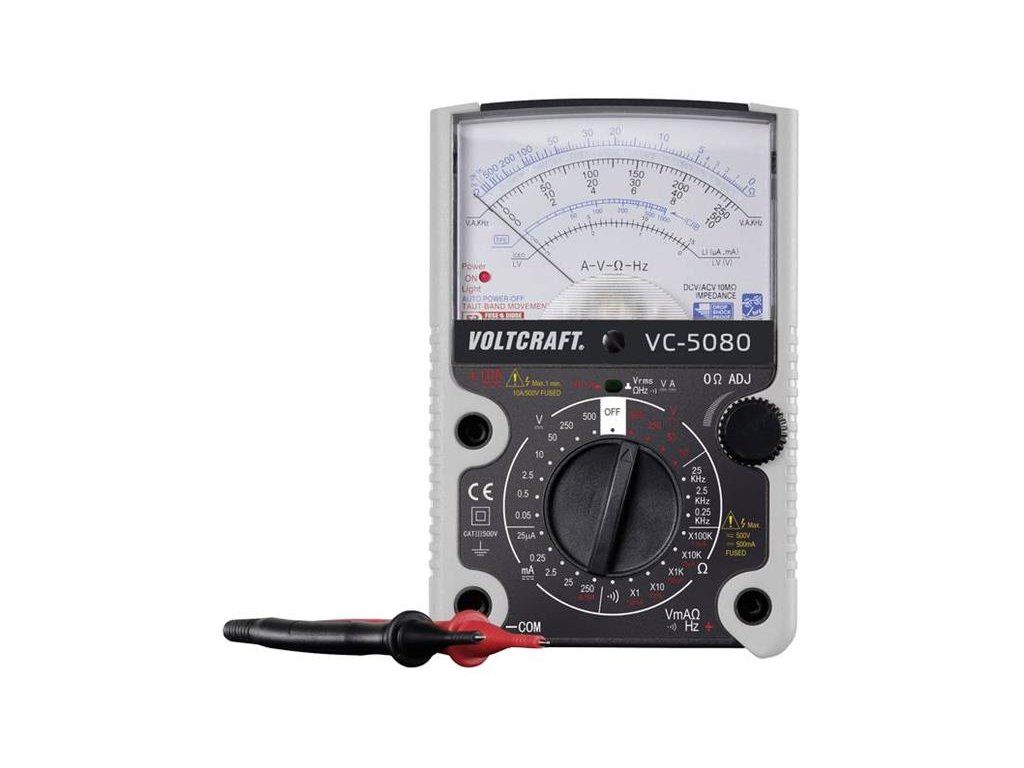

Voltcraft VC-5080 Analog Multimeter
Analog multimeter with many measuring ranges and mirror scale. Thanks to the extremely robust meter in conjunction with the overload-protected inputs, the VC-5080 multimeter is almost indestructible. When measuring voltages, the input impedance is only 10MΩ, so that the measured voltage will be very little affected and thus accurate measurement values can be achieved.


Product parameters:

- CAT III 500 V
- 10 MOhm input impedance for all voltage measurement areas
- Extremely durable measuring unit
- Measurement ranges V/AC, V/DC, A/DC, Ω, transistor test, frequency, diode test, acoustic interconnect tester
- Automatic shut-off function


Technical parameters:

Min. measured value V/DC: 0.001 V
Max. measured value V/DC: 500 V
Min. measured value V/AC: 0.2 V
Max. measured value V/AC: 500 V
Min. measured value A/DC: 0.5 uA
Max. measured value A/DC: 10 A
Resistance measurement range: 0 - 200 Ω MOhm
Frequency measurement range: 0.01 KHz - 25 Hz KHz
DC internal resistance: 10 MOhm
Internal AC resistance: 10 MOhm
Basic accuracy (±): 3%
Measurement Type:True RMS
Frequency range: 40 - 400 Hz
Power: 9 V battery, 2x AA batteries
Outside height: 160 mm
Outer width: 105 mm
Weight: 60 g
Calibrated: without certificate
Measurement category: CAT III 500 V
Voltage measurement: AC/DC
Current measurement: DC
Display: analogue

batteries
2 safety measuring cables
