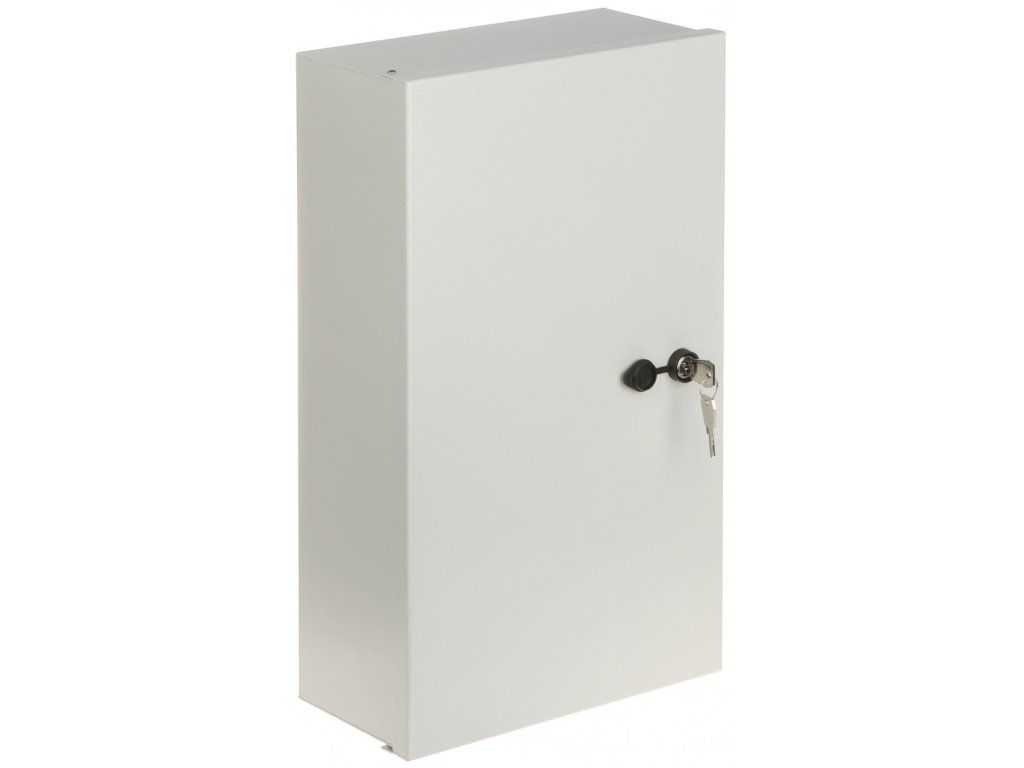

Waterproof installation cabinet, dimensions 540x310x145mm, IP55
Code: ABCT_A500002636Product detailed description
The watertight installation box with dimensions 540/310/145 mm must be mounted on a wall or column. The cabinet has 4 mounting holes. On the rear wall inside the cabinet there is an easily separable mounting plate with a size of 510x260 mm. The cabinet construction is completely watertight and the door, locked with a cylinder lock, is protected by a rubber seal. The cabinet can be mounted on a mast, using the appropriate bracket (available separately). Product parameters: Height 540 mm Width 310 mm Depth 145 mm Weight 2.96 kg Lock 1 piece Material Aluminium in RAL 7035 Cable glands PG 21 rubber 7 pcs Cable grommet holes PG 21 7 pcs Protection class IP 55Additional parameters
| Category: | ABC Tech |
|---|---|
| Weight: | 3 kg |
| EAN: | 5901225204288 |
| EAN: | 5901225204288 |
