Wi-Fi flood sensor PNI HS527-PRO

Product detailed description

The PNI HS527-PRO is commonly installed in environments at risk of water damage such as basements, utility rooms, storage areas, and external spaces like gardens and terraces. It integrates into smart home and security systems, allowing installers to monitor water intrusion in real time from remote locations. The device operates independently using battery power and communicates over a 2.4 GHz Wi-Fi network. Its compact size and IP55 rating make it suitable for both indoor and outdoor mounting, ensuring reliable performance even in damp or exposed conditions.

When installed correctly, the PNI HS527-PRO provides early warning of water accumulation, giving users time to mitigate potential damage. It is particularly useful in areas with plumbing systems, irrigation lines, or where appliances like washing machines or dishwashers are present. The sensor detects both large floods and small leaks, making it a versatile tool for property protection. The built-in speaker allows for immediate local alerts, while push notifications via the Tuya app ensure remote awareness of incidents.

Technical parameters

The technical parameters of the PNI HS527-PRO define its suitability for specific applications. The 80 dB alarm ensures sufficient volume to alert occupants, while the IP55 rating confirms resistance to water and dust. The battery-powered design with 3V DC input makes it easy to install without requiring wired power sources. The low standby current consumption of ≤15 μA ensures long battery life, while the higher draw during alarm (≤200 mA) reflects its active response capabilities. These factors influence placement decisions and maintenance planning for installers.

Installation and connection

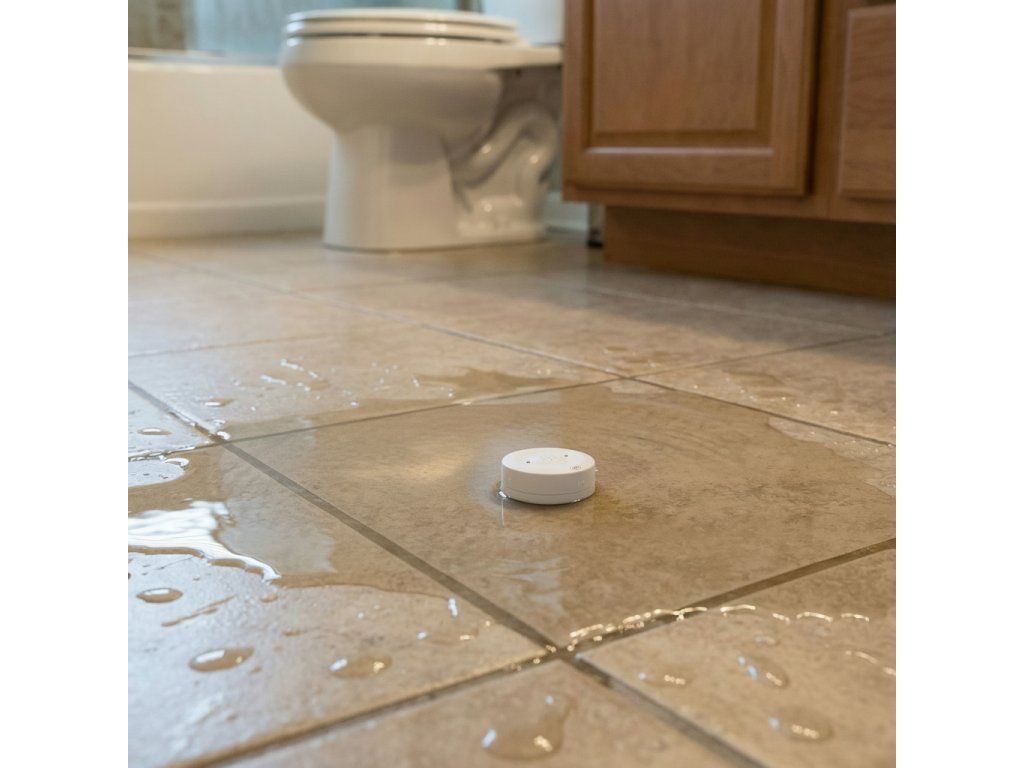

Installation of the PNI HS527-PRO involves securing the sensor to a flat surface near potential water sources such as pipes, appliances, or drains. The device is battery-operated and does not require electrical wiring, simplifying the process. Ensure the location is within range of the existing Wi-Fi network for consistent communication. The IP55 rating allows for mounting in damp or semi-outdoor areas, but direct exposure to heavy rain should be avoided unless specified in the project requirements.

Before final installation, verify that the device is paired with the intended Wi-Fi network through the Tuya app. Test the alarm functionality and confirm that notifications are received on the mobile device. Common mistakes include placing the sensor too far from the water source or in dead zones with poor Wi-Fi signal strength. Avoid installing it in enclosed spaces where the alarm might be muffled or where water could pool around the unit itself. Secure the device using the provided mounting options and ensure the surface is clean and dry before fixing it in place.

Compatibility and accessories

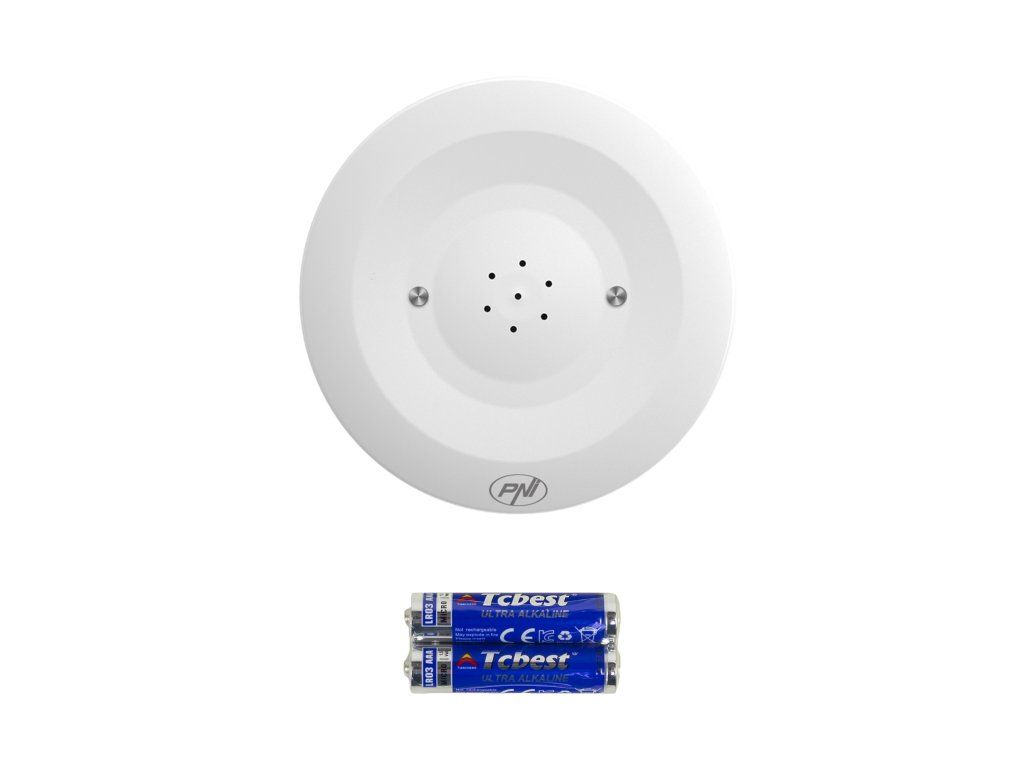

The PNI HS527-PRO is compatible with the Tuya app, allowing for integration into smart home systems that support this platform. It works independently but can be part of a larger network of sensors and alarms. No additional accessories are required for basic operation, as the device includes two AAA batteries in the packaging. For more complex setups, ensure that the user’s smartphone and Wi-Fi router are compatible with the Tuya app to enable full functionality. There are no alternative models listed for this product, so it is recommended to use it as a standalone solution unless otherwise specified by the project design.

Technical background for designers

The PNI HS527-PRO operates by detecting the presence of water through its contact-based sensing mechanism. When liquid comes into contact with the sensor, it triggers an internal circuit that activates the alarm and sends a signal over the Wi-Fi network. The built-in speaker produces an 80 dB alert, while the Tuya app provides remote notifications. The device is constructed from durable, non-corrosive materials to withstand environmental exposure, and the IP55 rating ensures protection against water jets and dust ingress. This makes it suitable for both indoor and semi-outdoor applications.

Integration into a system requires a stable Wi-Fi connection and a compatible app. The low standby power consumption makes it ideal for long-term deployment without frequent battery replacements. The device’s performance is influenced by the quality of the Wi-Fi signal and the accuracy of the sensor contacts. Regular testing and verification of the alarm function are recommended to ensure continued reliability. The design also considers ease of maintenance, with a compact form factor that allows for discreet placement in most environments.

Service and operation

Maintenance for the PNI HS527-PRO is minimal due to its battery-powered and wireless design. However, periodic checks should be performed to ensure the sensor remains functional. Verify that the alarm still operates at full volume and that the Wi-Fi connection is stable. Clean the sensor contacts regularly to prevent false readings caused by dirt or debris. Replace the batteries when the low-battery alarm is triggered, following the instructions in the user manual. No scheduled service intervals are specified in the documentation, but testing the device annually is recommended to confirm its readiness in case of an emergency.

During operation, the device will automatically detect water and trigger the alarm. Users can adjust the alarm duration and volume through the Tuya app. If the sensor fails to respond to a known water source, check for physical obstructions or signal interference. In such cases, relocate the device closer to the water source or improve the Wi-Fi signal strength. Always ensure that the device is installed in a location that allows for quick access in case of maintenance or replacement.

Frequently asked questions

Can the PNI HS527-PRO be connected to a smart home system?
Yes, the device is compatible with the Tuya app, which allows integration into smart home systems supporting this platform.

Is the alarm volume adjustable?
Yes, the user can adjust the alarm volume through the Tuya app to suit the environment.

Does the device require a power cable for operation?
No, the PNI HS527-PRO is powered by two AAA batteries included in the package and does not require a power cable.

Can the device be used outdoors?
Yes, the IP55 rating allows for use in semi-outdoor environments, but direct exposure to heavy rain should be avoided unless specified in the technical documentation.

Documents for download

• Manual (PDF)
