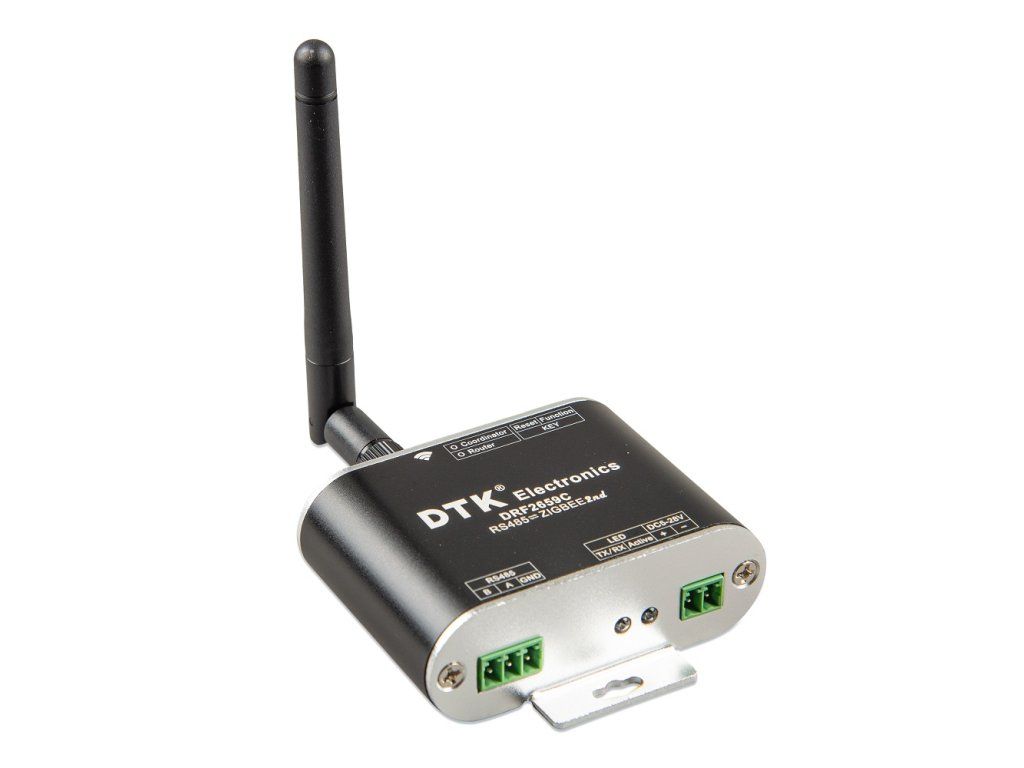

Zigbee to RS485 converter

Product detailed description

Device for wireless transmission of information from ET112 or ET340 energy meters to the Color Control GX display. Zigbee pairing procedure: 1. Connect the "Zigbee USB converter" to the GX device using the included USB cable, the "Active" LED will be lit 2. Connect the Energy meter to the "Zigbee RS485 converter" using the included RS485 cable and connect the power adapter, the "Active" LED will flash slowly 3. Press the "Function" button on the "Zigbee RS485 converter" twice short and once long (approx. 3s), the converters will then automatically pair Technical parameters: Power supply: 5V - 12V Temperature range: -40 - 85 deg. C -110dBm Dimension 70*50*24mm Standby: 40mA (max) Operating current: Sending: 120 mA (Max) Receiving: 45 mA (Max)
