10" Solarix 12 port 1U modular unmounted patch panel SX12M-0-STP-BK-UNI-N-10

Product detailed description

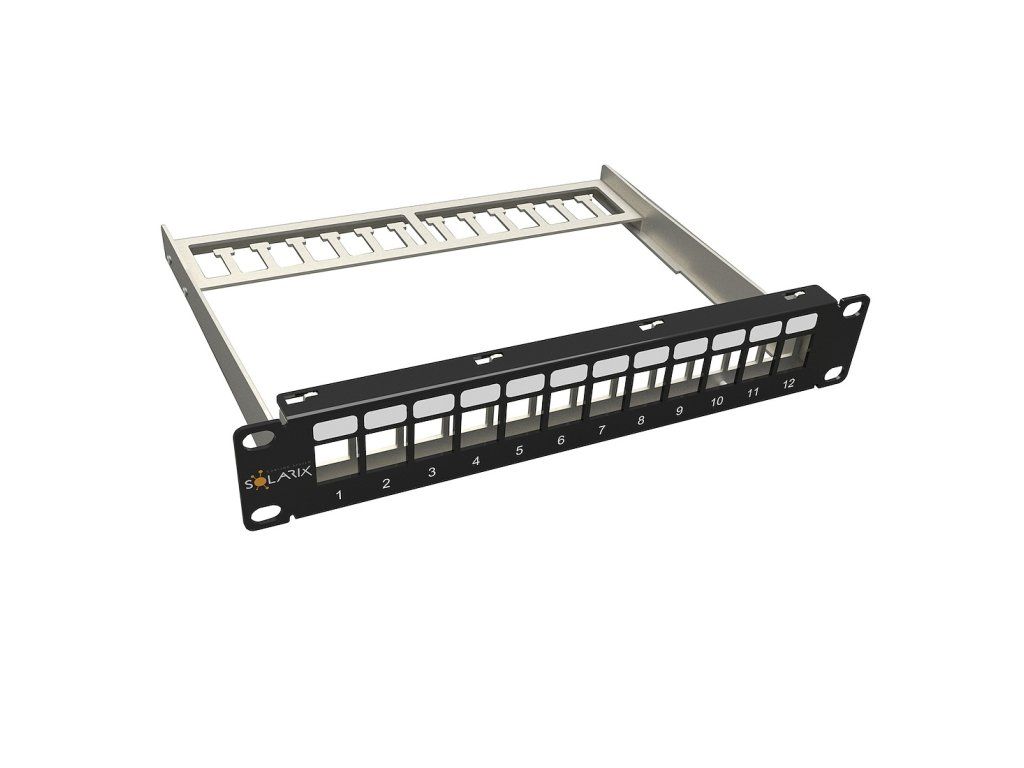

The Solarix patch panel labeled SX12M-0-STP-BK-UNI-10 is a universal unshielded patch panel that is designed for 12 shielded and unshielded Solarix SXKJ-xx-yyy-BK-SA and SXKJ-xx-yyy-BK-NA keystones. The modular design of the patch panel allows for convenient installation and, thanks to the tie bar included in the panel delivery, also for easy untying and firm attachment of the data cable directly to the panel body. This patch panel is equipped with a ground wire that allows it to be connected to the grounding of the switchboard. The color of the patch panel is black, the tie bars are silver, and the size in a 10" data rack is 1U. If necessary, the free ports of the panel can be blanked with the SXKJ-0-BK blanking plug. The dimensions of the keystone holes for this Solarix modular panel are 19.5±0.1mm x 14.8±0.1mm (i.e. according to EN 60603-7). The package includes 4 x M6 mounting kits, 12 x tie strips and 1 x ground wire. The panel is all-metal. Technical parameters: Number of ports: 12 Shielding: yes Tie bar: yes Color: Black Size: 1U Height: 44 mm Width: 254 mm Depth: 118 mm Storage temperature: -40 to 70°C Operating temperature: -10 to 60°C Max. operating humidity: 93% Packing: 1 piece, carton Package dimensions (height x width x depth): 50 mm x 295 mm x 120 mm Shipping Package: 30 pcs, carton box Shipping package dimensions (height x width x depth): 280 mm x 600 mm x 370 mm Mounting kit included: 4 x M6
