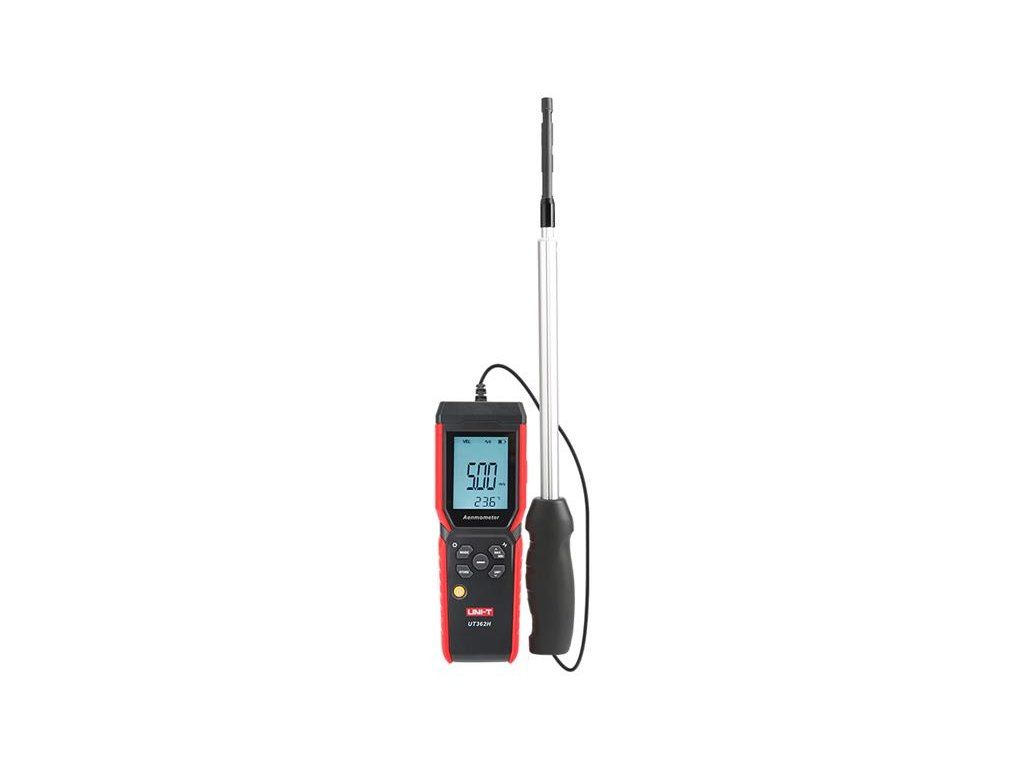

Anemometer UNI-T UT362H

Product detailed description

We offer a 3-year warranty on this product.

The UT362H Hot Wire Anemometer is the ideal choice for measuring wind speed and wind temperature due to its excellent stability, safety and reliability. It works by automatically calculating wind flow and helps users measure and record data regardless of indoor or outdoor measurements. Measuring indoor wind speed and wind flow can be considered as one of the indicators to assess air quality. Its slim probe rod helps professional HVAC/R personnel to easily measure the wind speed inside the ventilation duct. The instrument can be used in many fields - e.g. mining, petrochemical, energy, navigation, aviation and shipping, fan manufacturing, air conditioning systems or ventilation installation.


Product parameters:

- split design
- aluminium alloy retractable rod
- split design with retractable probe, easy measurement
- platinum resistance sensor
- 99 sets of measured data in storage
- wind speed/volume/temperature measurement
- low wind measurement
- wind flow mode helps to measure the volumetric flow in the pipe
- fitted with aluminium alloy extendable rod, light weight, flexible


Technical parameters:

- wind speed measurement range :
0 ~ 30 m/s, accuracy ±(4% + 0.1 m/s)
0 ~ 108 km/h, accuracy ±(4% + 0.4 km/h)
0 ~ 58.3 knots, accuracy ±(4% + 0.2 knots)
0 ~ 5906 frames per minute, accuracy ±(4% + 20 frames per minute)
0~11 bft, accuracy ±(1 bft)

- measurement of wind flow (volume) :
0 ~ 999900 m3/min (0.001 to 100)
0 ~ 999900 CFM (0.001 to 100)
0 ~ 999900 L/s (0.001 to 100)

- wind temperature measurement:
0 ~ 40 °C, resolution 0.1 °C, accuracy ± 0.5 °C
-20 ~ 0 °C or 40 ~ 70 °C, resolution 0.1 °C, accuracy ± 0.5 °C
32~104°F, 0.1°F resolution, ±0.9°F accuracy
-4~32°F or 104~158°F, 0.1°F resolution, ±1.5°F accuracy

- wind pipe shapes: circular, rectangular, flat
- section area setting:
circular (set diameter)
rectangular (adjust width and height)

- units:
cross-sectional area: m2 , ft2
wind flow m3/min, CFM, L/s
wind speed: m/s, km/h, fpm, mph, knots, bft
wind temperature: °C / °F

- warm-up time at switch-on 5 s
- fast or slow wind speed measurement mode
- sampling time: 0.5 s
- Data Hold
- overload indication
- statistical measurement: (MAX/MIN / mean timing / multipoint average)
- data storage : 99 sets
- lCD backlight
- auto shutdown: automatic shutdown in 5 minutes when no operation is in progress (can be cancelled)
- flexible probe length: 120 cm
- low battery indication
- operating temperature and humidity: 0 to 40 °C, ≤80%RH
- storage temperature and humidity: -20 to 60 °C, ≤80%RH
- battery: 3 x 1.5V (AAA) (included)
- product dimension: 180.3 × 63.0 × 40.1 mm (machine body only)
- product weight: approx. 312 g, without battery
