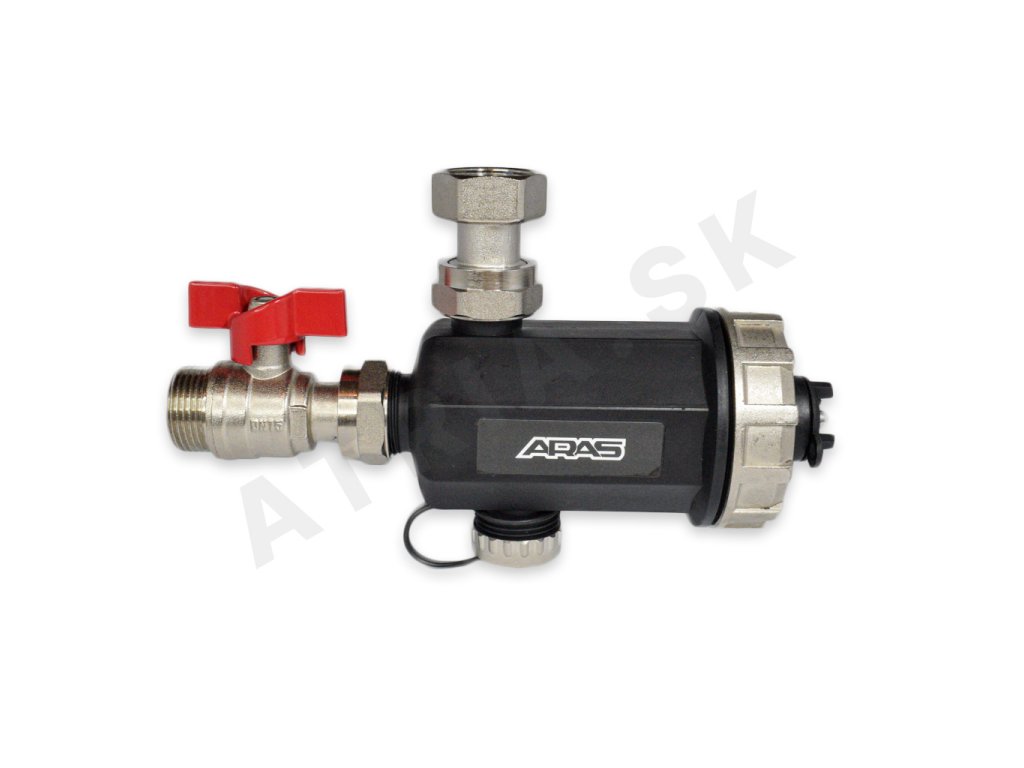

Aras magnetic filter 3/4"

Product detailed description

Magnetic filters are essential components in closed heating systems, particularly in residential and commercial buildings where long-term system efficiency and reliability are critical. Installers commonly encounter issues such as sludge accumulation in radiators, boiler inefficiency, and pipe blockages caused by ferrous and non-ferrous debris. The AVANSA Aras model is designed for integration into heating circuits, especially in systems with cast iron or steel components that generate metallic particles over time. It is typically installed near the boiler or at the return line to intercept contaminants before they circulate through the system.

Proper installation ensures that the filter captures both magnetic and non-magnetic particles, reducing the risk of clogging and wear on system components. The filter is suitable for use in both new and existing systems, and its compact design allows for installation in tight spaces. It is particularly useful in systems where frequent maintenance or cleaning is not feasible, as it simplifies the process of removing accumulated debris.

Technical parameters

Package dimensions (mm)	80/190/100
EAN	5949040800063
Weight	0.8 kg
Code	AVANSA-ARAS
Brand	AVANSA

The dimensions of the filter (80 mm x 190 mm x 100 mm) determine its suitability for installation in confined spaces. The weight of 0.8 kg and the 3/4 inch thread size (G3/4") are key factors for selecting the correct model for a given system. These parameters also influence the choice of mounting location and the type of tools required for installation.Installation and connection The AVANSA Aras magnetic filter is installed using a G3/4" threaded connection, typically between the boiler and the return pipe. A ball valve is included for isolating the filter during maintenance. The installation procedure involves turning off the system, draining the water, and securing the filter with the provided key. It is important to ensure that the filter is installed in the correct orientation to allow for efficient particle capture. Common installation errors include incorrect thread alignment, failure to close the ball valve during maintenance, and neglecting to check the filter regularly for debris accumulation.Compatibility and accessories The AVANSA Aras model is compatible with standard heating systems that use G3/4" threaded connections. It is commonly used in conjunction with boilers, radiators, and circulation pumps. No additional accessories are required for basic operation, as the package includes the filter, magnet, ball valve, and installation key. It is not necessary to order separate components unless specified by the system design.Technical background for designers The filter operates by using a neodymium magnet housed inside a cylindrical chamber. As water flows through the filter, the magnet attracts ferrous particles, while a mesh captures non-magnetic debris. The materials used are selected for durability and resistance to corrosion in closed heating systems. The filter’s efficiency depends on the flow rate and the concentration of metallic particles in the system. Regular maintenance is recommended to ensure continued performance, especially in systems with high levels of sludge or debris.Service and operation The filter requires periodic inspection and cleaning to maintain its effectiveness. The neodymium magnet is easily removable for cleaning, and the filter mesh can be replaced if necessary. There are no specified service intervals in the brief, but installers should check the filter during routine system maintenance. It is important to close the ball valve before removing the filter to prevent water leakage. After cleaning, the filter should be reinstalled and the ball valve reopened to restore circulation.Frequently asked questions

Can the AVANSA Aras be installed in a vertical position?
Yes, the filter can be installed in either a horizontal or vertical orientation, provided that the flow direction is maintained as per the manufacturer’s instructions.

Is the neodymium magnet removable without tools?
The magnet is designed to be easily removed using the included key, which allows for quick and efficient cleaning without the need for additional tools.

Can the filter be used in systems with non-ferrous components?
Yes, the filter captures both ferrous and non-ferrous particles using a combination of magnetic attraction and mechanical filtration via the mesh.

How is the filter sealed to prevent water leakage?
The filter is sealed using standard G3/4" threaded connections, and the ball valve provides an additional sealing mechanism to prevent water loss during maintenance.
