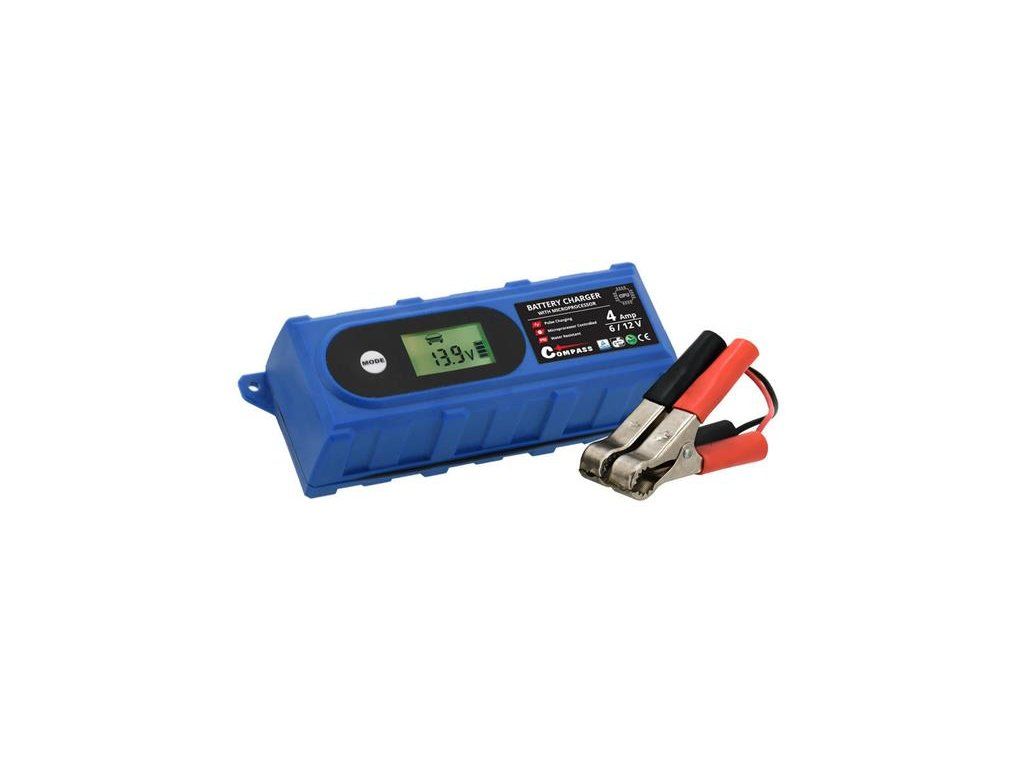

Battery charger COMPASS 07146 6/12V

Product detailed description

Battery charger COMPASS 07146 6/12V
Universal portable battery charger 6 or 12V, 230V power supply, designed for batteries with a capacity of 4 - 120 Ah.
The charger automatically detects if a 6V or 12V battery is connected. When a 12V battery is connected, different charging modes (gentle charging mode, standard mode and winter mode) can be selected with the button.
Once the battery is charged, charging is interrupted and the charger switches to maintenance mode, where the microprocessor controls the pulse charging to keep the battery in a charged state.
Stable charging current 3.8 A, high efficiency (75%). Compact size makes it ideal for use at home, on the road and in the garage. Charges all types of 6/12V lead-acid (Pb) batteries - maintenance-free GEL (gel), AGM, MF, VRLA, maintenance-free PbWet and PbCa. Pulse charging extends battery life and keeps the battery in better condition.

Technical data:
supply voltage: 230 V ~ 50Hz
power consumption: max 180W
charging voltage/current
6V mode: 7.3 V=; 0.8 A eff.
12V Moto mode: 14.4 V=; 0.8 A eff.
12V Auto mode: 14.4 V=; 3.8 A eff.
12V Winter mode: 14.7 V=; 3.8 A eff.
charging type: pulse, automatic
battery types: maintenance-free lead (Pb) batteries GEL (gel), AGM, MF, VRLA, maintenance-free PbWet and PbCa
for battery capacity: 6/12V 4 - 120 Ah
operating temperature: -20°C ~ +50°C
