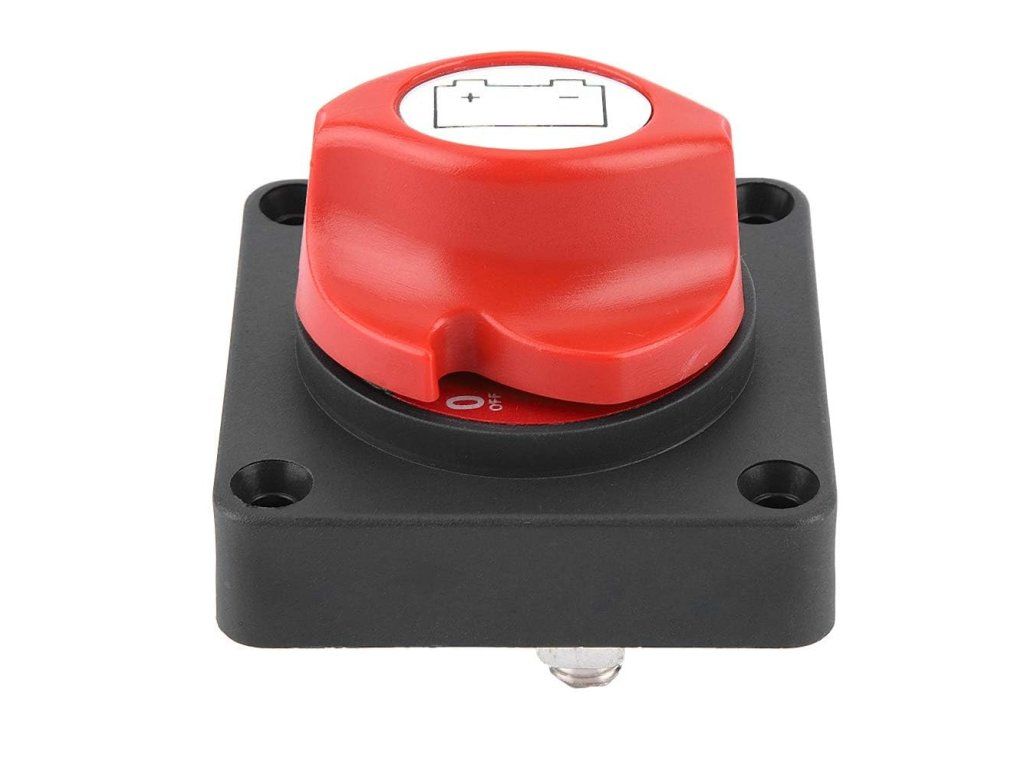

Battery disconnector 275A ASW-A702

Product detailed description

Battery Switch ON/OFF 275A is suitable for battery systems up to 30 V. It has a unique ergonomic and aesthetic knob design. The knob is removable for safety reasons or to add isolation. The battery disconnect can be surface or panel mounted, providing flexibility during installation. The battery disconnector is used to disconnect the plus terminal of the battery from the DC system. Removable driver. Technical parameters: Max. continuous current: 275 A Max. current 10 sec: 500 A. Max. starting current: 1200 A Rated voltage: 30 V Bolt diameter: 10 mm Base housing: glass fibre reinforced nylon Weight: 0.2 kg Dimensions (hxwxd): 50 x 50 x 70 mm Mounting type: surface or rear panel mounting
