Battery disconnector 275A Victron Energy

Product detailed description

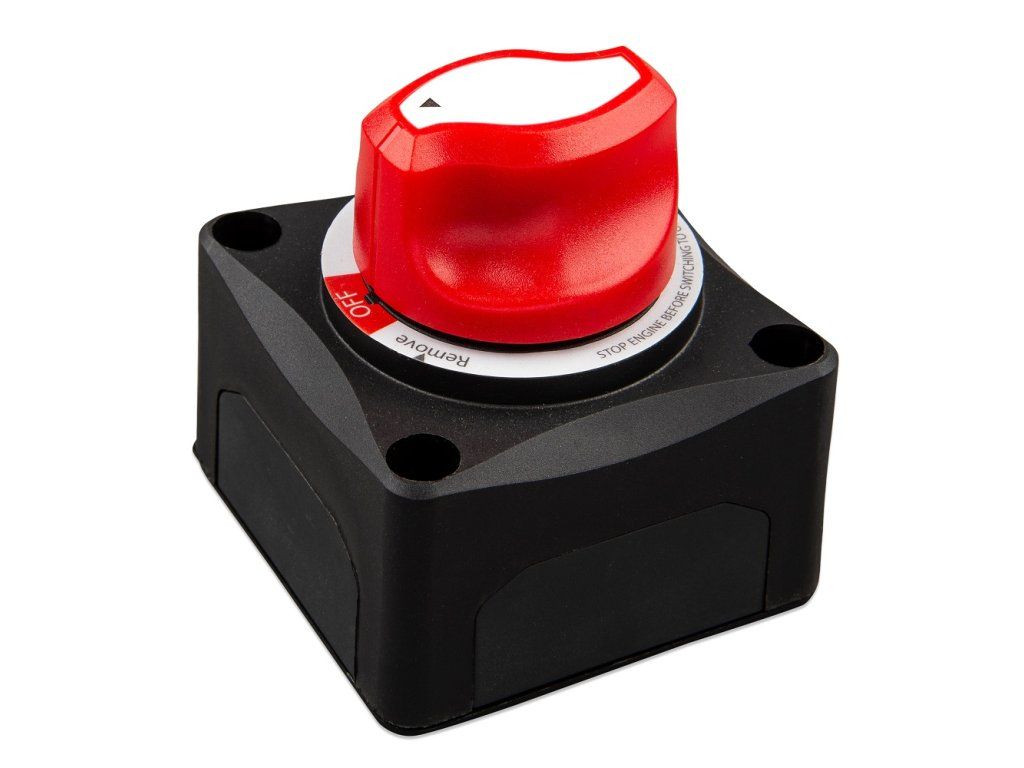

Battery Switch ON/OFF 275A is suitable for battery systems up to 48 V. It has a unique ergonomic and aesthetic knob design. The knob is removable for safety reasons or to add isolation. The battery disconnect can be surface or panel mounted, providing flexibility during installation. The battery disconnector complies with ISO8846 (ignition protection) and is suitable for use in the machine room. The battery disconnector is used to disconnect the plus terminal of the battery from the DC system. Removable controller. Technical parameters: Max. continuous current: 275 A Max. current 1 min: 450 A. Max. starting current: 1200 A Rated voltage: 48 V Bolt material: plated copper Nut material: Plated copper Bolt diameter: 9.53 mm Recommended tightening torque: 8 N - m Base cover: glass fibre reinforced nylon Weight: 0.2 kg Dimensions (hxwxd): 69 x 69 x 73 mm Mounting type: surface or rear panel mounting Standards: ISO8846 / SAE J1171 A sample diagram for the use of the battery disconnector can be found in the related documents section below.
