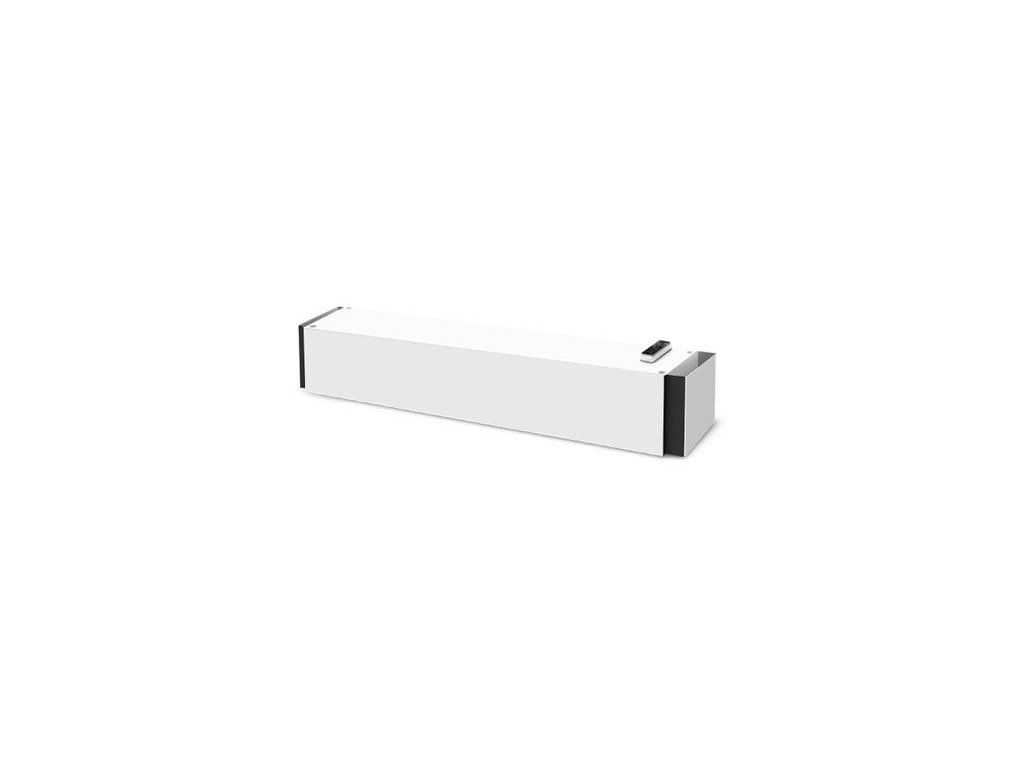

Battery module UHB1024 - 2,56KWH

Product detailed description

The UHB1024 battery system consists of four high-voltage batteries and a BMS control unit designed specifically for use with the Geti GF-I10H3 hybrid three-phase inverter.

The BMS module works with the PYLONTECH HV (high voltage) communication protocol and can also be used with other brands of inverters.

2.56 kWh battery module (UHB256S)


Product parameters:

- Complete battery system including control unit
- high capacity 2.56 kWh
- intelligent traffic control via communication with the inverter
- easy connection and commissioning
- narrow space-saving design


Technical parameters

- Number of batteries: 1
- rated capacity: 2.56 kWh / 50 Ah
- usable capacity: 2.3 kWh / 45 Ah
- rated voltage: 51.2 V DC
- Voltage range: 44.8 - 57.6 V DC
- Battery type: Li-ion (LFP)
- Charging current: 25 A standard / 50 A maximum
- Discharge current: 25 A standard / 50 A maximum
- Lifetime: more than 6000 cycles at 80% discharge (>70% capacity)
- Communication: RS-485 / RS-232 / CAN 2.0
- Protection against: overvoltage, undervoltage, overheating, undercooling, overcurrent, short circuit
- working environment: indoor
- ambient charging temperature: 0 to +55 °C (cannot be charged in freezing temperatures!)
- ambient discharge temperature: -20 to +55 °C
- storage temperature: -20 to +55 °C
- optimum operating temperature: +20 to +30°C
- humidity: 5 to 95% (non-condensing)
- altitude: ≤ 2000 m
- cooling: air flow (passive)
- Certification:CE, UN38.3, MSDS
- Dimensions: 851*255*130 mm
- weight: 32 kg
