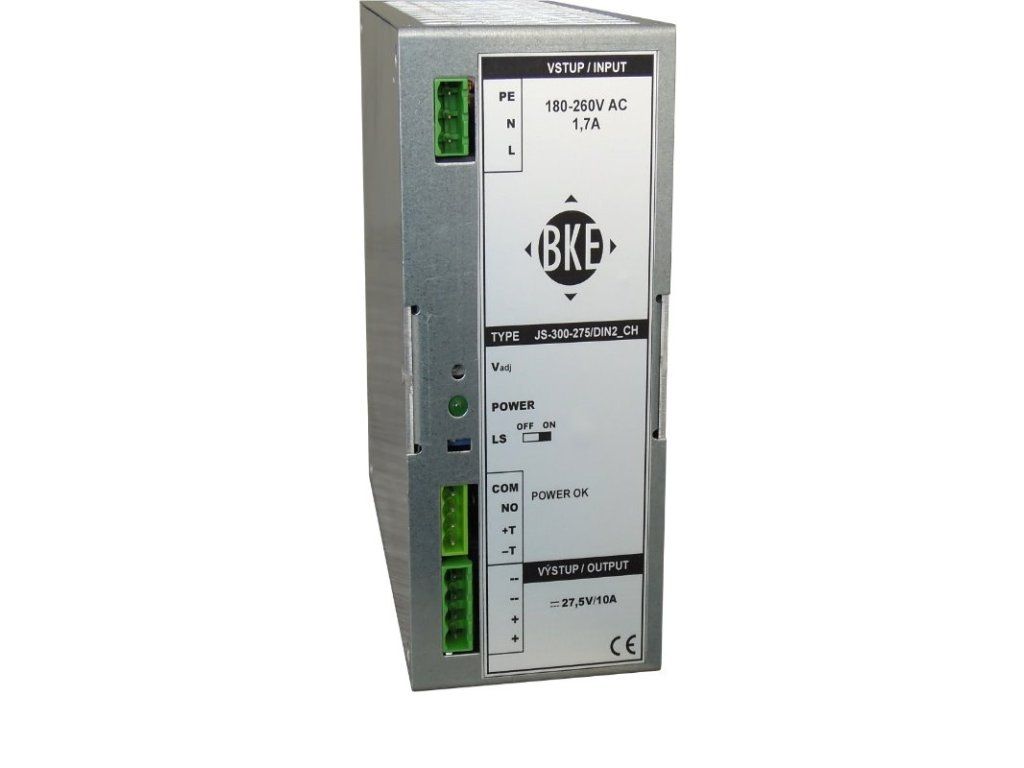

BKE JS-300-275/DIN2_CH_ODP DIN rail power supply/charger, 27.5V, 300W, 10 A, switched

Product detailed description

Pb battery charger with integrated battery over-discharge protection. The output has an IU characteristic with current limitation. The charger is equipped with active power factor compensation (PFC). Mechanically, the charger is DIN rail ready. The operation of the power supply is indicated by a green LED and a potential-free contact. An integrated battery disconnector (LVD) protects the connected battery from deep discharge and damage. The power supply can also be operated without the battery connected. Main features Power output 275 W 180-260 V AC input active PFC Output with isolation dida IU characteristic Integrated battery disconnector Charging temperature compensation Efficiency approx. 87% Overload protection Protection against over- and under-voltage at the output Thermal protection Short circuit protection at the output Dimensions 70x155x175mm Operating temperature -20 to +50 °C Metal box Protection IP 20 User replaceable fuse DIN rail mounting Technical parameters Power supply Charging function Power [W]: 275 Output voltage [V]: 27.5 Output current [A]: 10 Efficiency [%]: 87 Physical characteristics Degree of protection: IP20 Design: DIN rail mounted Power input and output: terminal block Operating temperature [°C]: -20 to 50 Weight [g]: 1400 Width [mm]: 70 Height [mm]: 155 Depth [mm]: 175
