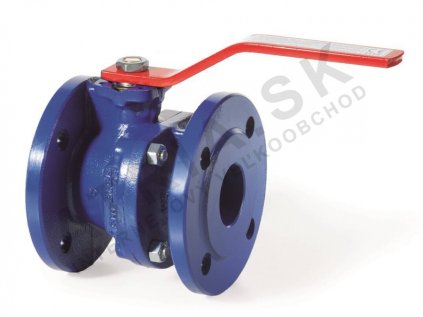

BRA.B2.100 FKM - ball valve B2.100 FKM

This category includes flanged ball valves from the GV B2.100 FKM series designed for heating, ventilation, air conditioning (HVAC) systems, water distribution, and compressed air applications. These valves are constructed with cast iron bodies, brass stems and balls, and feature FKM (Viton®) seals for chemical resistance. They operate within temperature ranges of -10°C to +150°C and are suitable for use with actuators due to ISO 5211 compliant mounting.

The valves are full-bore, allowing unrestricted flow, and are available in various nominal diameters (DN 20 to DN 150) with corresponding body lengths. They are not suitable for steam or flow regulation and must be selected according to system pressure and media compatibility.

How to choose

• Select the correct DN size based on pipe dimensions and flow requirements (e.g., DN 100 for 190 mm length valves).
• Ensure flange compatibility with PN16 standards as per EN 1092.
• Verify media compatibility with FKM seals and brass components for non-corrosive fluids.
• Confirm suitability for actuator mounting if automated control is required.
• Do not use in steam systems or where flow modulation is needed.

Frequently asked questions

Can these valves be used with an actuator?
Yes, they are compatible with actuators due to their ISO 5211 compliant stem design.

Are these valves approved for potable water?
Yes, they meet requirements for potable water use under relevant regulations.

What is the maximum operating pressure?
Maximum pressure is 16 bar, with a reduced limit of 10 bar at the end of a pipe run.
