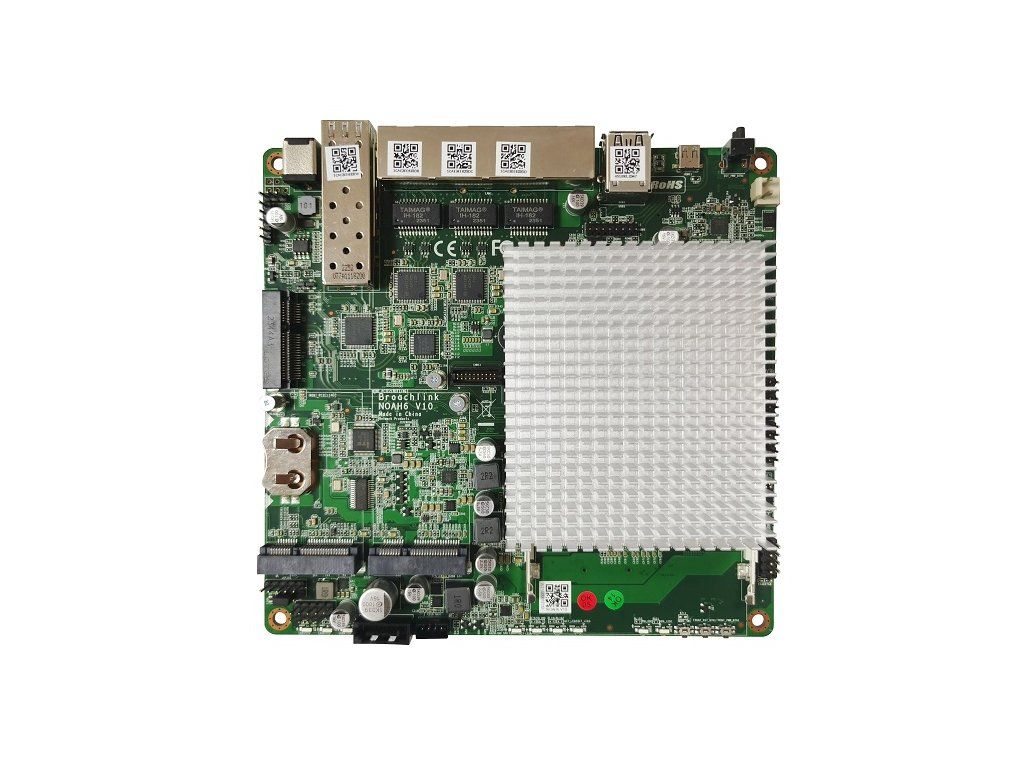

Broachlink Noah6 Firewall Router Motherboard Intel E3845, 4 cores 1.91 GHz

Product detailed description

The Noah 6 is a high-performance, reliable fanless hardware designed for continuous operation in harsh environments. With a powerful Intel Atom E3845 processor and a wide range of expansion options, it is the ideal choice for a variety of applications such as industrial routers, security systems, IoT devices, telecommunications infrastructure and many more. The compact size and flexible connectivity options (Ethernet, USB, miniPCIe) make this board an excellent solution for applications where reliability and performance are key. With low power consumption and a wide operating temperature range, the Noah 6 is ready for demanding tasks in industrial and commercial environments. Applications: - Industrial environments (router, hardware controller, control panel interface, ...) - Telecommunications (router, IPBX, VoIP gateway, LTE, WiFi controller, etc.) - Network (firewall router, aggregator, VPN server, NAS, video surveillance, ...) - Security (VPN server, analyzer, packet inspector, ...) - IoT (gateway, concentrator, local controller, local analyzer, ...) - Prototyping (experiments, geek hobbyists, ...) Processor System CPU: Intel Atom E3845 Core: 4 Frequency: 1.91GHz L2 Cache: 2MB BIOS: AMI 64 Mbits AES: AES-NI Memory Technology: DDR3L 1333MHz Max. Capacity: 8 GB (Should be installed in factory) Socket: 1 x 204 pin SODIMM Display micro HDMI Ethernet 3 x RJ45 Gigabit Intel I210AT 1 x SFP Gigabit Intel I210AS WatchDog Timer Output: System reset Internal Watchdog Timer: (programmable 1-255s,1-255min, disable) Storage mSATA: 1 x full size mSATA SATA: 1 x SATAII (Max. Data Transfer Rate up to 3.0 Gb/s) Internal I/O Up to 3 Serial: 1 x RS-232 , 2xTTL (Transfer rate up to 1 Mbit/s) Ethernet: Up to 3 GbE Reset Button: 2 Power Button: 2 (For system wake) USB: 3 x USB2.0 + 1 x USB3.0 GPIO: 20-bit GPIOs Expansion MINI_PCIE1 slot has PCIe, SIM and USB signal for (4G/LTE). MINI_PCIE2 slot has SIM and USB signal for (4G/LTE). mSATA: 1 Power Power input: 12V ±10% only Power Consumption (Typical,Minimum system) Noah with E3845: 0.5A @ 12V (5.28W) Power Consumption (Max, test in pfSense) Noah with E3845: 1A @ 12V (12W) Environment Operating 0 ~ 60° C (32 ~ 140° F) (Operating humidity: 40° C @ 95% RH non-condensing) Non-Operating -40° C ~ 85° C and 60° C @ 95% RH non-condensing Physical Characteristics Dimensions (L x W): 160 x 152 mm (6.3" x 5.99") Weight: 0.45 kg (0.99 lb) (with heatsink) Total Height: (with cooler + PCB + Bottom) 33mm
