Car amplifier PEIYING BASIC PY-2C127

Product detailed description

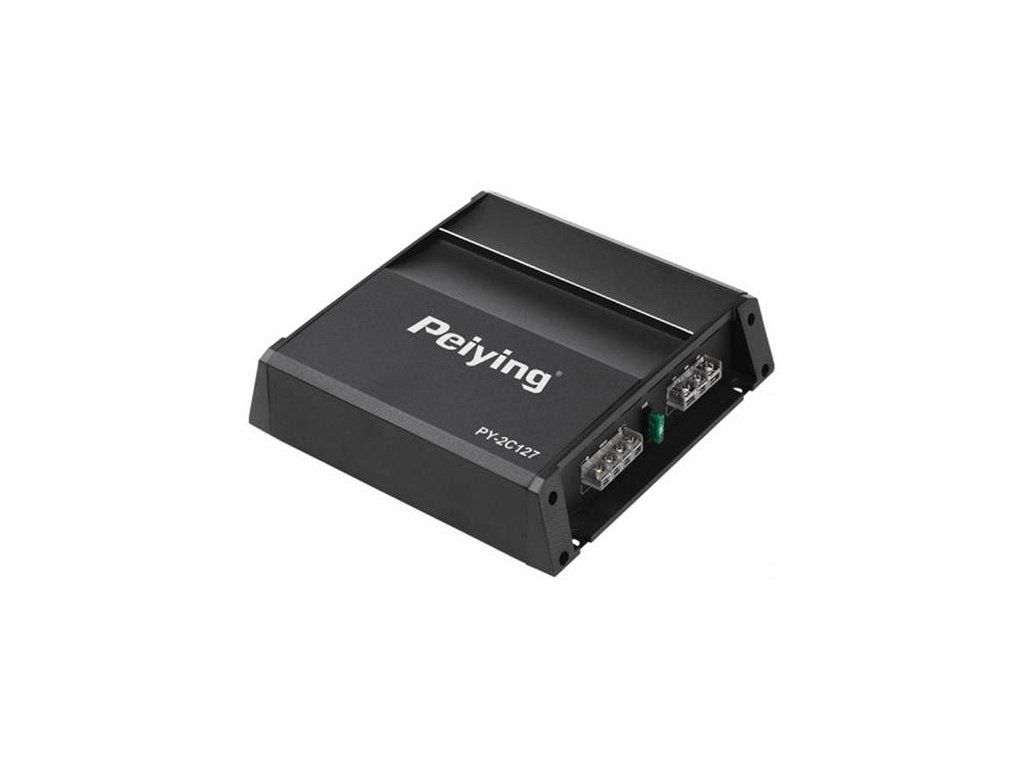

Car amplifier PEIYING BASIC PY-2C127
Peiying Basic Automotive Amplifier PY-2C127
The Peiying Basic PY-2C127 car amplifier is a solid audio device that delivers high sound quality and high performance in a compact design. Thanks to its advanced technical parameters, the PY-2C127 is the perfect choice for car music lovers looking for a high-performance amplifier for their audio system.

The PY-2C127 offers RMS power of 2x 80W into 4 ohms and 2x 120W into 2 ohms, allowing flexible adaptation to different speaker configurations. In bridge mode, the amplifier delivers 200 W of power into 4 ohms. THD distortion is only 0.01%, ensuring clear and accurate sound. A frequency response of 20 Hz - 20 kHz provides full coverage of the audible range, and a signal-to-noise ratio of 98 dB ensures low noise.

The PY-2C127 features an adjustable low-pass filter from 50 Hz - 250 Hz and an upper-pass filter from 100 Hz to 2.2 kHz, allowing the signal to be precisely adjusted to the user's preference. In addition, the amplifier offers a bass boost function in the range of 0 - 12 dB, which allows low tones to be accentuated. Input sensitivity of 0.2 V to 6 V and input impedance of 10,000 ohms provide versatility in matching a variety of signal sources.

Dimensions and safety
The amplifier has a compact size of 290 x 240 x 64 mm, which makes it easy to install in various places in the car. A 30 A fuse provides additional protection against overload and damage. The PY-2C127 is a versatile and effective solution for any car radio, offering excellent sound quality and flexibility in configuration.

Technical parameters:

RMS power into 4 ohms: 2x 80 W
RMS power into 2 ohms: 2x 120 W
Bridge power up to 4 ohms: 200 W
Min. Speaker Impedance: 2 Ohms
THD distortion: 0.01%
Frequency response: 20 Hz ~ 20 kHz
Input sensitivity: 0.2~6V
Input impedance: 10 000 Ohms
Signal-to-noise ratio: 98 dB
Channel separation: 50 dB
Low-pass filter: 50 Hz ~ 250 Hz
Bass Gain: 0 ~ 12 dB
High-pass filter: 100 Hz ~ 2.2 kHz
Fuse: 30 A
Dimensions: 290x240x64 mm
