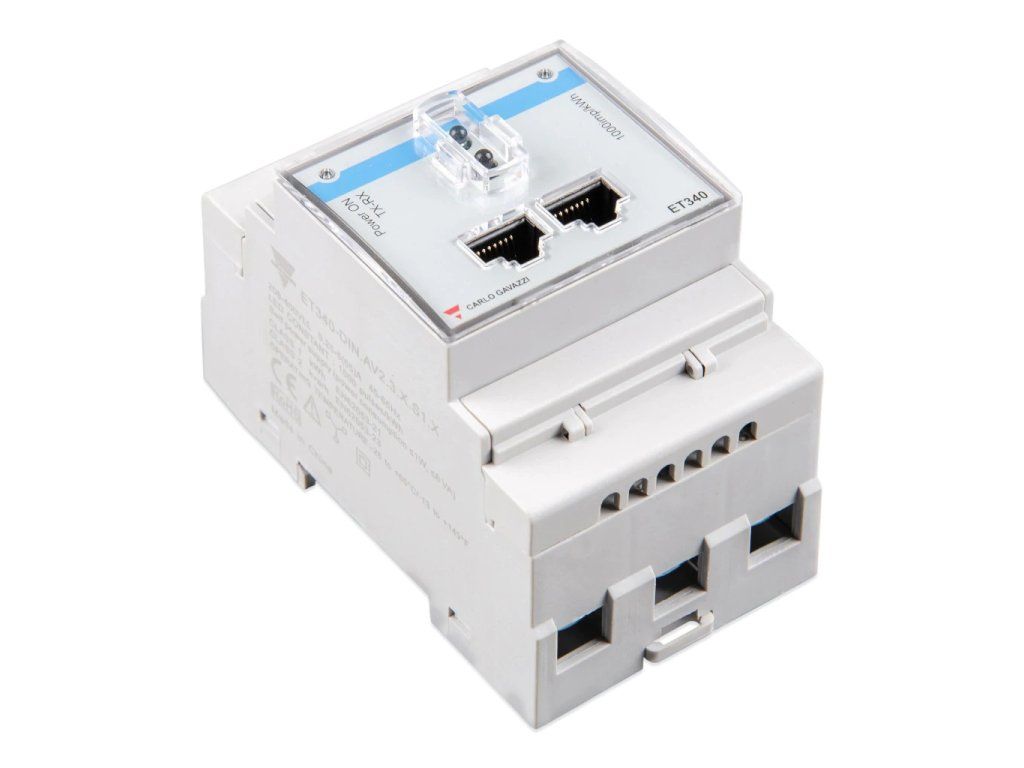

Carlo Gavazzi current meter ET340, 3 Phase

Product detailed description

The meter is designed to measure the power and energy of an entire application in a junction box or to measure the output power of a PV inverter and display the data on the Color Control GX and VRM portal ET340 Three-phase energy converter (for three phases, max. 65 A) Direct connection either via RS485 to USB interface with 1.8 m cable length or 5.0 m cable length. Wireless connection via Zigbee. Product parameters: Product code: ET340DINAV23XS1X Voltage inputs: 3-phase (3-wire), 240 V L-L; 3-phase (3-wire), 380 V L-L; 3-phase (3-wire), 400 V L-L; 3-phase (3-wire), 415 V L-L Frequency: 50 Hz, 60 Hz Energy measurement: Power and energy measurement Power source: Self-powered Weight: 0.2kg Class 1 (kWh) according to EN62053-21 Accuracy ±0.5% RDG (current/voltage) DC current measurement up to 65AAC Energy measurement: kWh and kvarh (import/export); kWh+ by 2 tariffs; kWh per phase System variables: kW, kvar, kVA, VLL, VLN, PF, Hz, kWdmd, kWdmd peak Phase variables: kW, kvar, kVA, VLL, VLN, A, PF Dimensions: 3-DIN module Degree of protection (front): IP20 RS485 Modbus port (optional) Digital input (for tariff management)
