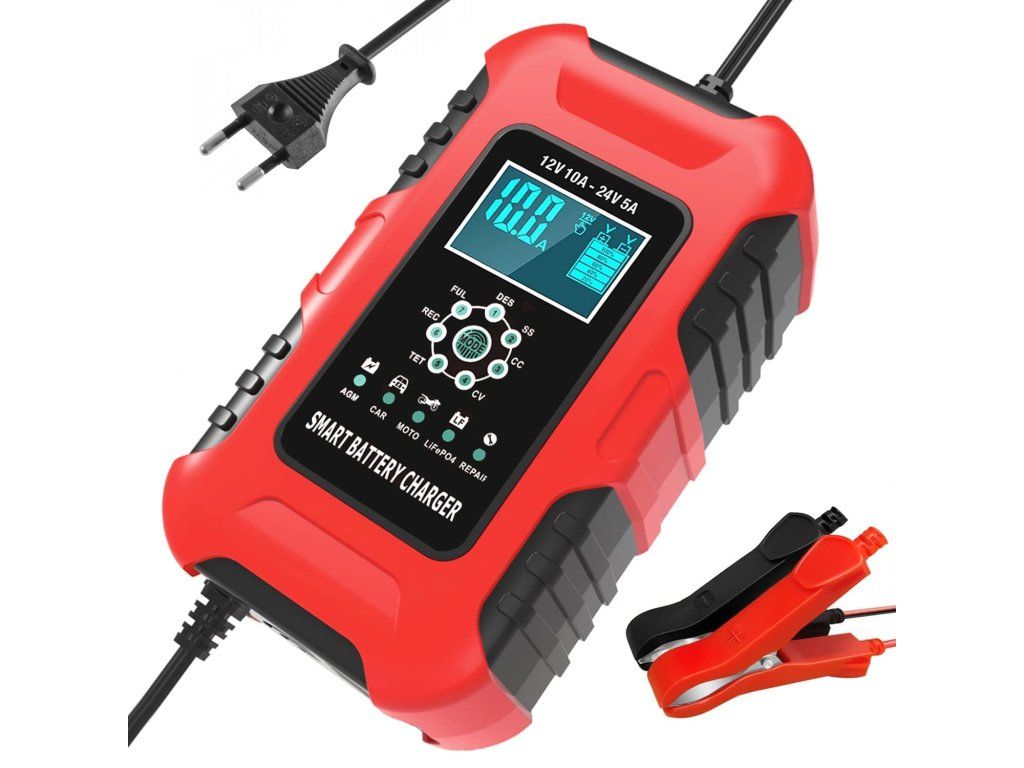

Carspa CFG12/24-10 charger for lead acid and LiFePO4 batteries

Product detailed description

Smart, fully automatic charger for Pb and LiFePO4 batteries with current up to 10A, allowing permanent connection to the battery being charged. It is equipped with a program for regeneration of Pb batteries. 7-stage charging. Specifications: - Input voltage: 100-240VAC, 50-60Hz - Rated power: 12V 10A / 24V 5A - Minimum starting voltage: 7.0V - Chargeable batteries: Pb 12 or 24V, LiFePO4 3S-8S, Li-Ion 2S-7S - Battery capacity range: 6-180Ah (12V), 6-90Ah (24V) - Protection against over-polarity - Short circuit protection - Surge protection - Overheat protection - Fan protection - Thermal protection: 65°C +/- 5°C - Efficiency: App. 85%. - CB, CE, IEC60335, EN61000, EN55014 - Dimensions (L × W × H): 170 × 100 × 70 mm - Weight: 590g Instructions for use: 1) Connect the charged battery to the charger's supply terminals. This is indicated by an acoustic signal (beep) and the display lights up. The display shows the battery terminal voltage. 2) Plug the charger into the mains. You now have about 10sec to change the charging mode (AGM, CAR, MOTO, LiFePO4, REPAIR) After that the charger will automatically enter the charging phase. The circular indicator shows the phases of the charging cycle, the display shows the clamp voltage, charging current, ambient temperature and charge level. 3) When the desired clamp voltage is reached (for AGM batteries, the value is 14.4V), the charger switches to float mode with a holding voltage (for AGMs, 13.5V)
