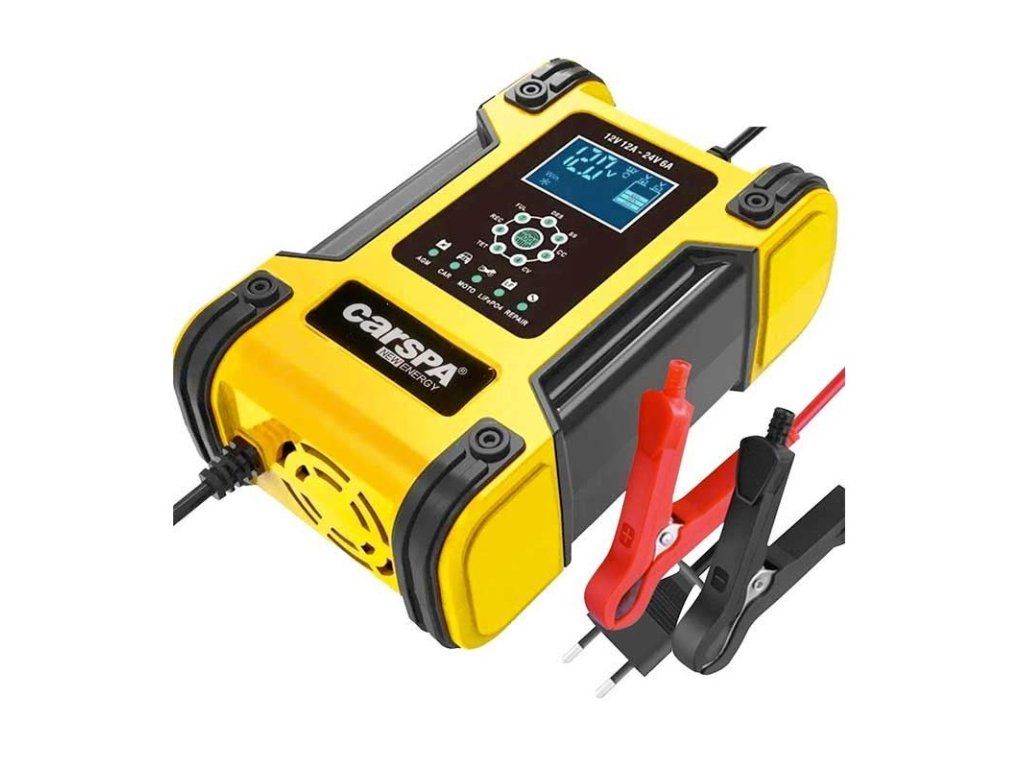

Carspa charger CFB12/24-12/06 for lead acid and LiFePO4 batteries

Product detailed description

Smart, fully automatic charger for Pb and LiFePO4 batteries with current up to 12A, allowing permanent connection to the battery being charged. It is equipped with a program for regeneration of Pb batteries. 7-stage charging . Specifications: - Input voltage: 100-240VAC, 50-60Hz - Rated power: 12V 12A / 24V 6A - Minimum starting voltage: 7.0V - Chargeable batteries: Pb 12 or 24V, LiFePO4 3S-8S, Li-Ion 2S-7S - Battery capacity range: 6Ah - 200Ah - Protection against reverse polarity - Short circuit protection - Surge protection - Overheat protection - Fan protection - Thermal protection: 65°C +/- 5°C - Efficiency: App.85%. - CB, CE, IEC60335, EN61000, EN55014 - Dimensions (L × W × H): 185 × 115 × 70 mm - Weight: 700g Instructions for use: 1) Connect the charger to the mains voltage and use the MODE button to select the desired charging mode (AGM, CAR, MOTO, LiFePO4, REPAIR) Preset AGM, the last setting remains in the memory of the device even after it is disconnected from the mains. 2) Disconnect the instrument from the mains and connect the charged battery to the supply terminals. Step 1 is not necessary if the same type of battery is repeatedly charged. 3) Plug the charger into the mains. The charger will start charging automatically. The circular indicator displays the phases of the charging cycle, the terminal voltage, the charging current, the ambient temperature and the degree of charge. 4) When the desired clamp voltage is reached (14.4V for AGM), the charger switches to float mode with a holding voltage (13.5V for AGM)
