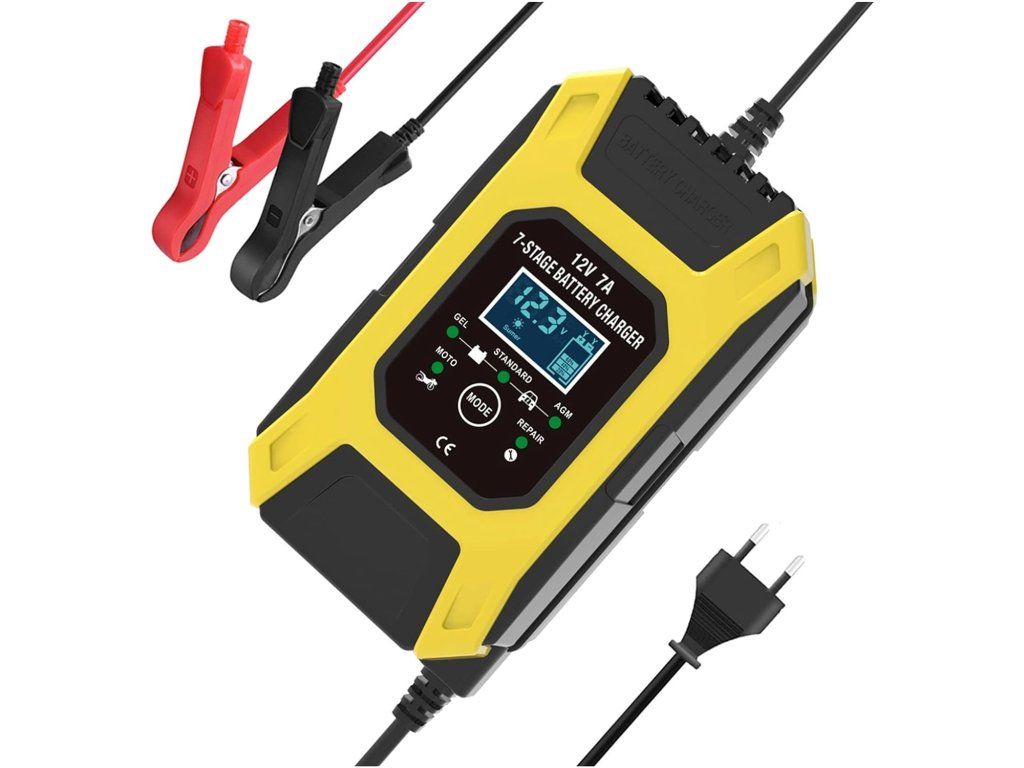

Carspa charger CFD12-07 for 12V 7A lead acid batteries

Product detailed description

Automatic charger for Pb batteries with current up to 7A allowing permanent connection to the battery being charged. It is equipped with a program for battery regeneration and a choice of battery type (AGM, AGM GEL, STANDARD, MOTO). 7-stage automatic charging. Specifications: - Input voltage: 100-240VAC, 50-60Hz - Rated power: 12V 7A - Minimum starting voltage: 7.0V - Chargeable Battery: Pb 12V - Battery capacity range: 6-150Ah - Protection against over-polarity - Short circuit protection - Surge protection - Overheat protection - Fan protection - Thermal protection: 65°C +/- 5°C - Efficiency: App. 85%. - CB, CE, IEC60335, EN61000, EN55014 - Dimensions (L × W × H): 150 × 86 × 63mm - Weight: 470g Instructions for use: 1) Connect the charged battery to the charger's supply terminals.This will be indicated by an acoustic signal (beep) and the display will light up. The display shows the battery terminal voltage. 2) Plug the charger into the mains. Now you have about 10sec to change the charging mode (AGM, AGM GEL, STANDARD, MOTO, REPAIR) Then the charger will automatically enter the charging phase. The display shows the clamp voltage, charging current and charge level. 3) When the desired clamp voltage is reached (approx. 14.4V), the charger switches to float mode with a holding voltage (13.5V for AGM)
