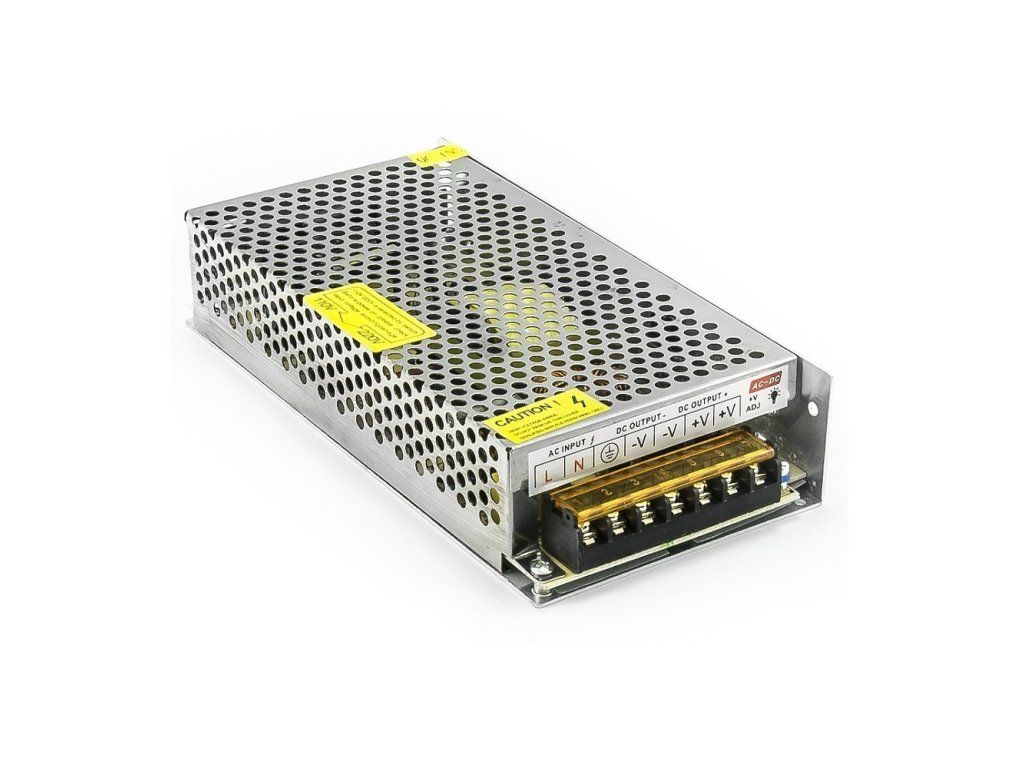

Carspa HS-120-48 industrial switching power supply 48V 120W

Product detailed description

The Carspa industrial switching power supply is designed for reliable and stable power supply in technical and industrial applications. It features a compact design, high efficiency and resistance to overload and short circuit. It is ideal where continuous and safe operation of electronic equipment is required. Parameters and specifications: - AC Input voltage range selected via a switch - Low weight, high efficiency - Short circuit / overload protection - Airflow cooling - LED power-on indicator - 100% full load test - Dimensions 159x97x38mm - Package weight: 0.48kg Output: DC voltage 48V Voltage deviation ±1% Rated current 2.5A Current range 0~2A Rated power 120W Vibration/Noise(max.) 180mvp-p DC voltage regulation ±10% Input: Voltage range 90~132VAC/180~264VAC(switch adjustable), 254~373VDC Frequency 47~63Hz AC current(Typ.) 2.4A/115VAC, 1.2A/230VAC Efficiency(Typ.) 86% Peak cold start current 18A/115VAC,36A/230VAC Idle consumption < 3.5mA/240VAC Protection: Overload over 110%~135% of rated power protection type: hiccup mode, automatic recovery after removing the cause of fault condition Overvoltage 15.6~17.8V Protection method: o/P disconnection,automatic recovery after removing the cause of fault condition Ambient environment Operating temperature & humidity -10°C~+60°C, 20%~90%RH Storage temperature & humidity -20°C~+85°C,10%~95%RH non-shrink Shock resistance 10~500Hz, 2G 10min/1cycle, repeated after 60 minutes, each axis Standards: Safety meets UL1012 EMC standard meets EN55022, CLASS A Other: Dimensions (LxWxH) 159*97*38mm Weight 0.48kg
