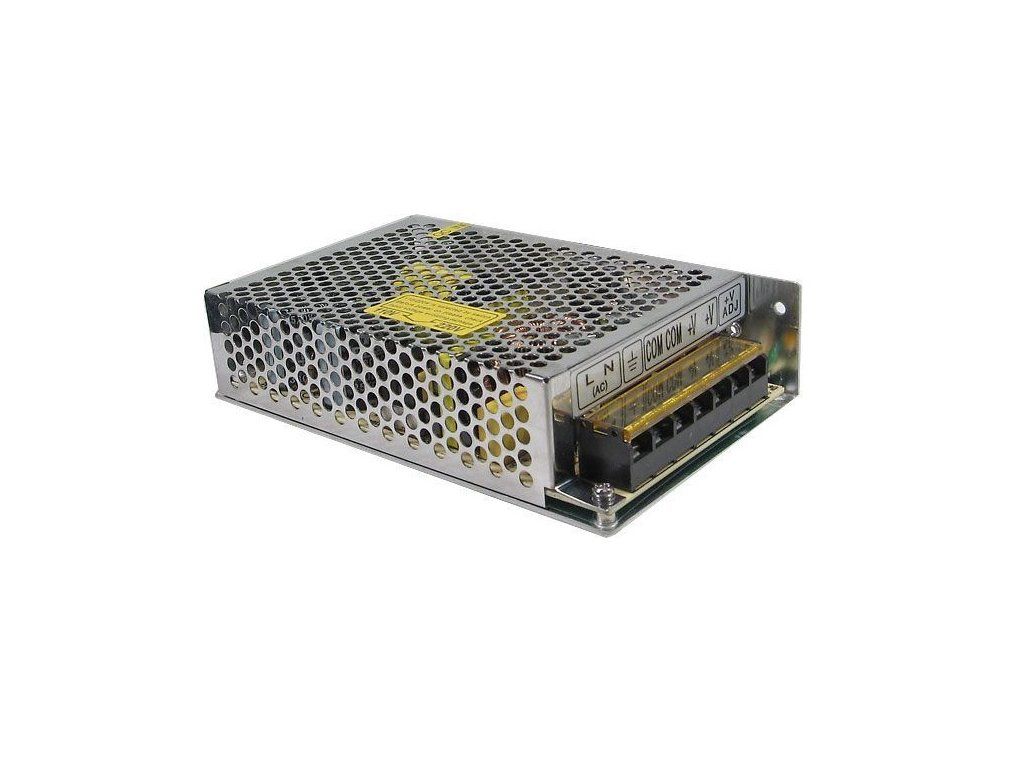

Carspa HS-150-48 industrial switching power supply 48V 150W

Product detailed description

The Carspa industrial switching power supply is designed for reliable and stable power supply in technical and industrial applications. It features a compact design, high efficiency and resistance to overload and short circuit. It is ideal where continuous and safe operation of electronic equipment is required. Parameters and specifications: - AC Input voltage range selected via a switch - Low weight, high efficiency - Short circuit / overload protection - Airflow cooling - LED power-on indicator - 100% full load test - Dimensions 159x97x38mm - Package weight: 0.45kg Output: DC voltage: 48V Voltage deviation: ±1% Rated current: 3.2A Current range: 0~3.2A Rated power: 153.6W Vibration/Noise(max): 200mvp-p DC voltage regulation: ±10% Input: Voltage range: 90~132VAC/180~264VAC (switch adjustable),254~373VDC Frequency: 47~63Hz AC current(Typ.): 3.2A/115VAC,1.6A/230VAC Efficiency(Typ.): 86% Peak current: cold start 18A/115VAC,36A/230VAC Idle consumption: < 3.5mA/240VAC Protection Overload: over 115%~135% of rated power protection type: hiccup mode, automatic recovery to remove the cause of error condition Overvoltage: 54.8~56.6V Protection method: o/P disconnection,automatic recovery after removing the cause of the fault condition Environment: Operating temperature & humidity: -10°C~+60°C, 20%~90%RH Storage temperature & humidity: -20°C~+85°C,10%~95%RH non-shrink Shock resistance: 10~500Hz, 2G 10min/1cycle, repeated after 60 minutes, each axis Standards: Safety: meets UL1012 EMC standard: meets EN55022, CLASS A Other Dimensions(LxWxH): 159*97*38mm Weight: 0.45kg
