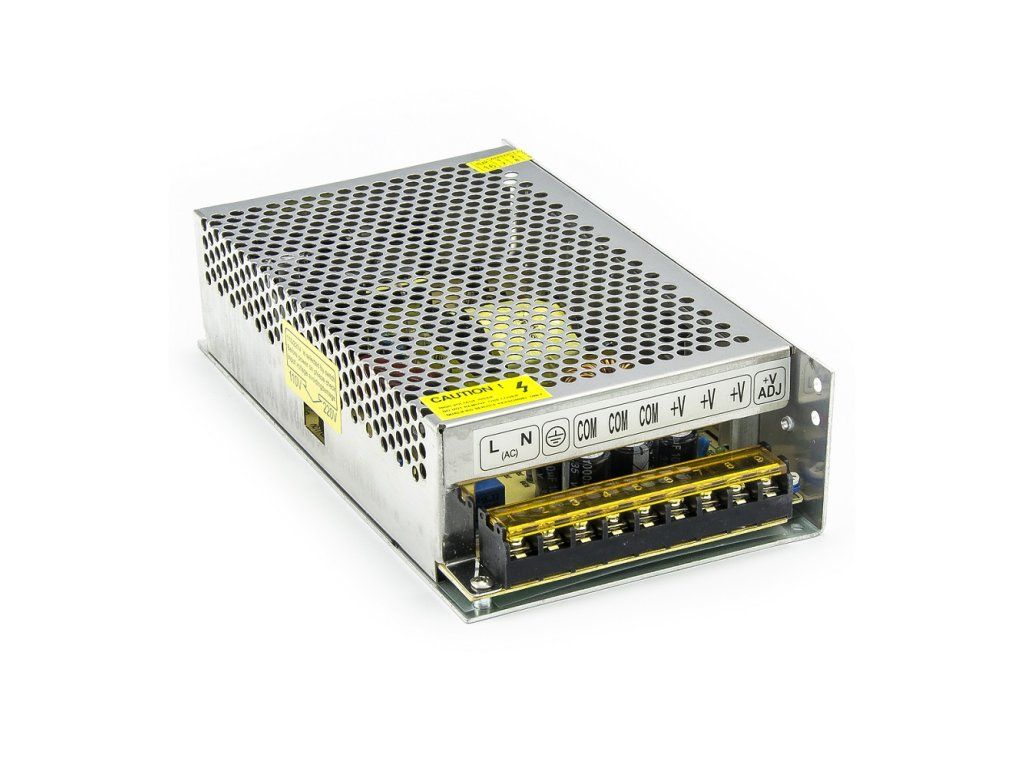

Carspa HS-250-12 industrial switching power supply 12V 250W

Product detailed description

The Carspa industrial switching power supply is designed for reliable and stable power supply in technical and industrial applications. It features a compact design, high efficiency and resistance to overload and short circuit. It is ideal where continuous and safe operation of electronic equipment is required. Parameters and specifications: - AC Input voltage range selected via a switch - Low weight, high efficiency - Short circuit / overload protection - Airflow cooling - LED power-on indicator - 100% full load test - Dimensions 199x110x50mm - Package weight: 0.85kg Output: DC Voltage: 12V Voltage deviation: ±1% Rated current: 20A Current range: 0~20A Rated power: 240W Vibration/Noise(max): 150mvp-p DC voltage regulation: ±10% Input: Voltage range: 90~132VAC/180~264VAC(switch adjustable), 255~373VDC Frequency: 47~63Hz AC current(Typ.): 5.5A/115VAC, 2.8A/230VAC Efficiency(Typ.): 83% Peak current: cold start 18A/115VAC, 36A/230VAC Idle consumption: < 3.5mA/240VAC Protection Overload: over 115%~150% of rated power Protection method: O/P disconnection,automatic recovery after removing the cause of fault condition Environment: Operating temperature & humidity: -10°C~+60°C, 20%~90%RH Storage temperature & humidity: -20°C~+85°C,10%~95%RH non-shrink Shock resistance: 10~500Hz, 2G 10min/1cycle, repeated after 60 minutes, each axis Standards: Safety: meets UL1012 EMC standard: meets EN55022, CLASS A Other: Dimensions (LxWxH): 199*110*50mm Weight: 0.85kg
