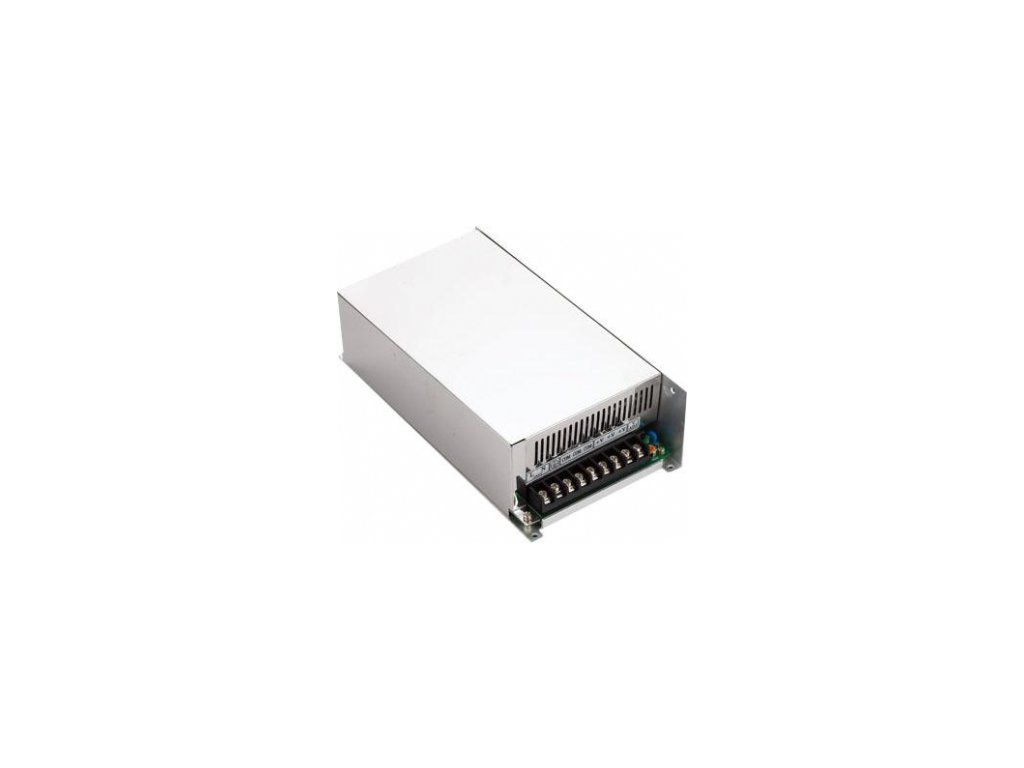

Carspa HS-500-24 industrial switching power supply 24V 500W

Product detailed description

The Carspa industrial switching power supply is designed for reliable and stable power supply in technical and industrial applications. It features a compact design, high efficiency and resistance to overload and short circuit. It is ideal where continuous and safe operation of electronic equipment is required. Parameters and specifications: - AC Input voltage range selected via a switch - Low weight, high efficiency - Protection against: short circuit/overload/surge/temperature - Cooling fan ON-OFF: Automatic regulation - LED on indicator - 100% full load test - Dimensions 238x124x65mm - Package weight: 1.45Kg Output DC voltage: 24V Voltage deviation: ±1% Rated current: 20A Current range: 0~20A Rated power: 480W Vibration/Noise(max): 180mV DC voltage regulation: ±10% Input Voltage range: 180~264VAC, 240~370VDC Frequency: 47~63Hz AC current(Typ.): 5.0A/230VAC Efficiency(Typ.): 84% Peak current: Cold start 50A/230VAC Idle Consumption: < 3.5mA/240VAC Protection Overload protection: 105%~135% protection type: hiccup mode, automatic restart after removing the cause of error condition Overvoltage: 115%~135% Protection type: hiccup mode, automatic restart after removing the cause of fault condition Overheating: >55°C fan on, <45°C fan off, >85°C O/P disconnect protection mode: O/P disconnect, automatic recovery when temperature drops Ambient environment Operating temperature & humidity: -10°C~+60°C,20%~90%RH Storage temperature & humidity: -20°C~+85°C,10%~95%RH non-shrink Shock resistance 10~500Hz, 2G 10min/1cycle, repeated after 60 minutes, each axis Standards Safety:Meets UL1012, EMC standard meets EN55022, CLASS A Other Dimensions (LxWxH)238*124*65mm Weight 1.45kg
