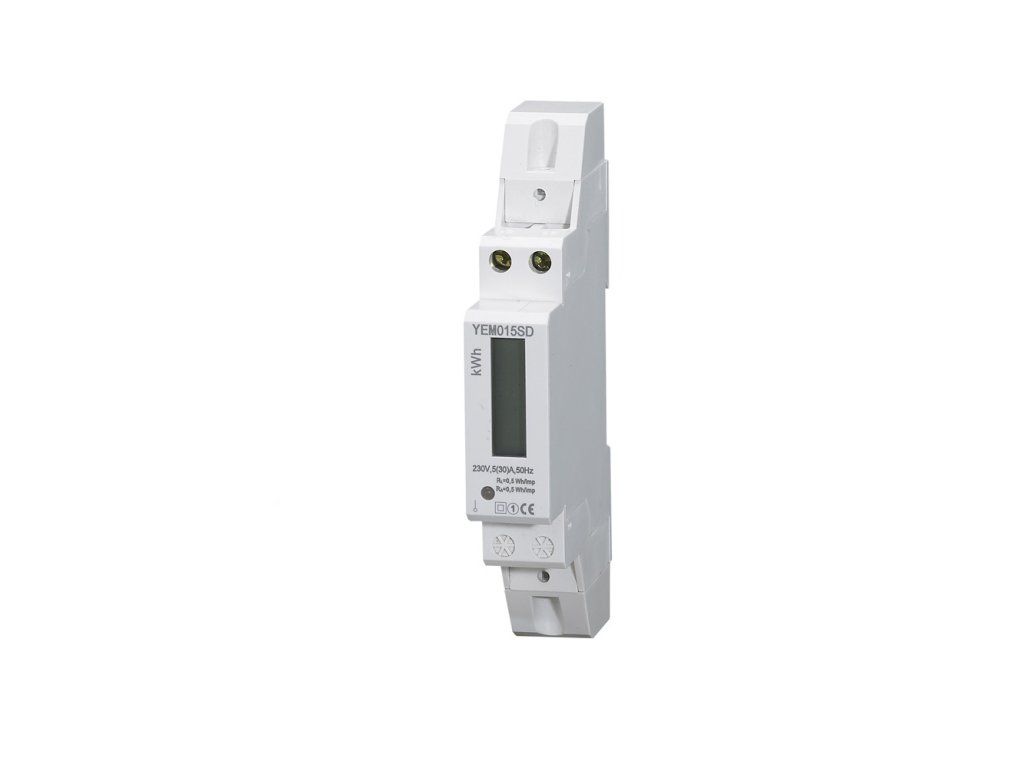

CARSPA YEM015SD DIN rail mounted single phase digital electricity meter

Product detailed description

CARSPA YEM015SD DIN rail mounted single phase digital electricity meter Electrical Specifications: Voltage: 230V ± 30% Operating voltage: 161V - 300V AC Operating current range: 0.25A - 32A Accuracy Class: 1.0 Standard: IEC 62053-21 Frequency: 50/60Hz Pulse constant: 1000imp/kwh IP protection: IP51 Display mode: - LCD5 + 2 = 99999.99kwh - Counter 5 +1 = 99999.9kwh Consumption: less than 2W Initial current: 0.004Ib Operating temperature: -10~50°C Storage temperature: -30 ~ 70 °C Red flashing: 1000 pulse indication Year average value: 75%, short time value: 95% Power supply: Corresponding connection mode 1000 DIN43856 (see meter) Power phase leads (L) to terminal 1 Neutral power leads (N) to terminal 4 Power phase leads (L) to terminal 3 Neutral consumption leads (N) to terminal 6 Pulse connection: Voltage 12 ~ 27V, current - 27 mA, max lead length: 20m Pulse width = 90 ms, connect to terminal 20 and 21. Value limits: max.60VDC, max. 50mA
