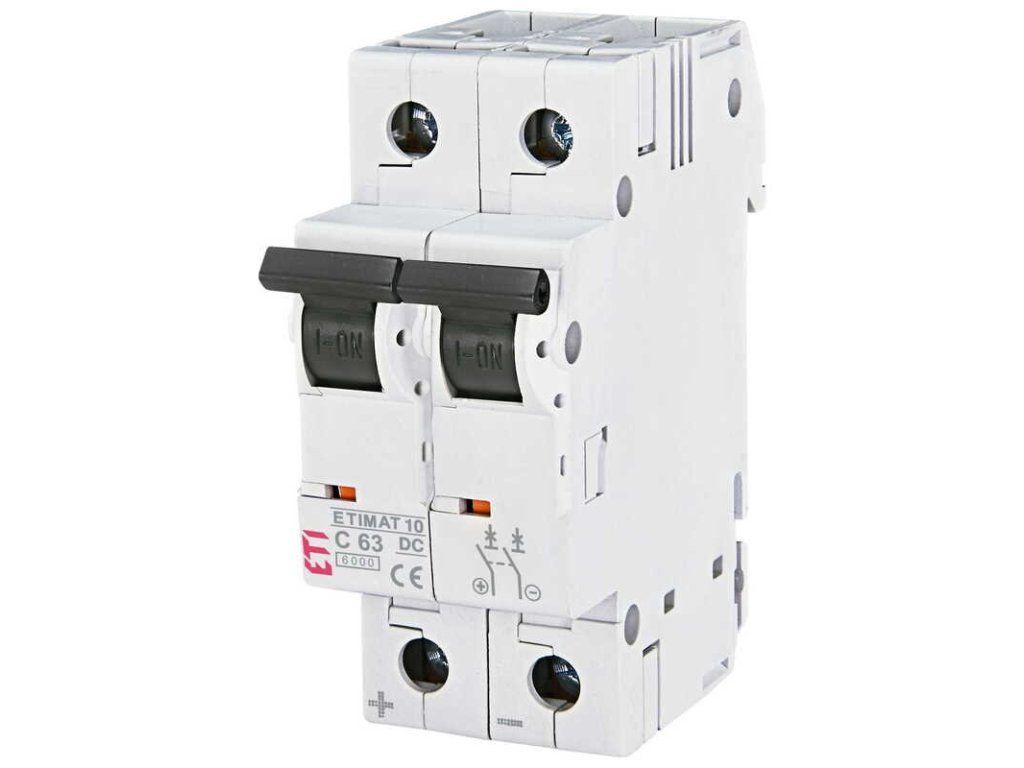

Circuit breaker ETIMAT 10-DC 2-pole C63 6kA - 63A
Code: ABCT_A500004542Product detailed description
It serves to protect cables against overload and short circuit. Important note - it is important to always observe the polarity of the device during installation. Technical parameters: Rated working voltage DC: 220 V/ 440 V d.c. Short-circuit resistance: 6kA Tripping characteristic: C Rated current: 63A Number of poles: 2 Terminals: 1-25mm2, max. 2.5Nm Protection rating: IP20 Mounting position: any Weight: 240g Standards: IEC 60898, EN 60898, DIN VDE 0641 ManufacturerAdditional parameters
| Category: | ABC Tech |
|---|---|
| Weight: | 0.1 kg |
| The item has been sold out… | |
