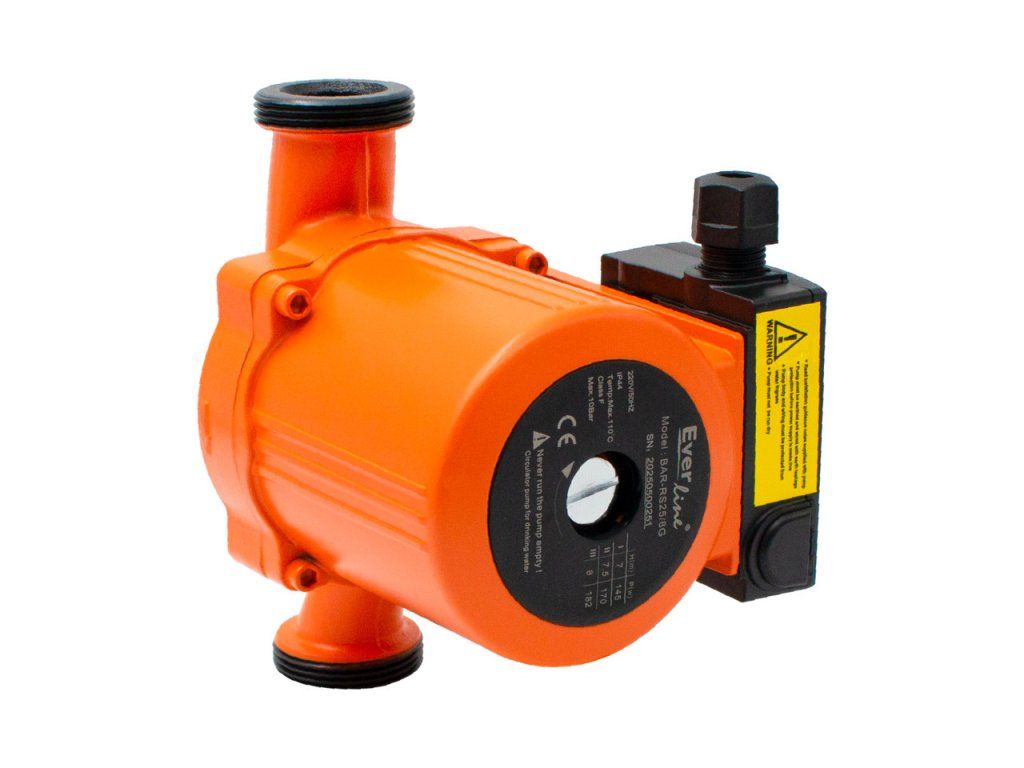

Circulation pump Everline 25/8/180

Product detailed description

The Everline 25/8/180 circulation pump is a reliable solution for heating systems in family houses, apartments and smaller commercial buildings. Circulation pumps ensure smooth circulation of heating water, thereby contributing to efficient heat transfer and economical heating operation. This circulation pump is designed for trouble-free operation in systems with radiators, underfloor heating and mixed heating circuits. Thanks to its high-quality workmanship, easy installation and three-stage speed control, it is a reliable choice for new installations and replacement of an older circulation pump.

Features:

• Circulation pump designed for heating systems of family houses, apartments and smaller commercial buildings.
• Suitable for radiator and underfloor heating.
• Three-speed regulation allows you to easily adjust the performance to the requirements of the heating system.
• High delivery head of up to 8 m is also suitable for larger heating circuits.
• Quiet, reliable and energy-efficient operation.
• Designed for pumping clean water or a mixture of water with antifreeze (up to 10%).
• Robust cast iron body with ceramic shaft and ceramic bearings ensures long service life and low wear.
• Easy installation thanks to the standard threaded connection G 1½" (DN25).
• Ideal for replacing existing circulation pumps with an installation length of 180 mm.

Technical parameters:

• Model: BAR-RS25/8G
• Type: Circulation pump
• Designation: 25/8/180 mm
• Maximum delivery head: 8 m
• Maximum flow rate: 170 l/min (10.2 m³/h)
• Connection: G 1½" (DN25)
• Installation length: 180 mm
• Power supply: 220 – 240 V / 50 Hz
• Power consumption (3 stages): 270 / 210 / 150 W
• Maximum operating pressure: 10 bar
• Temperature of pumped liquid: -10 °C to +110 °C
• Maximum ambient temperature: 40 °C
• Protection: IP44
• Insulation class: F
• Body material: cast iron
• Shaft material: ceramic
• Bearing material: ceramic
• Weight: approx. 5 kg
