Angle ball valves - series 59 and 59/1

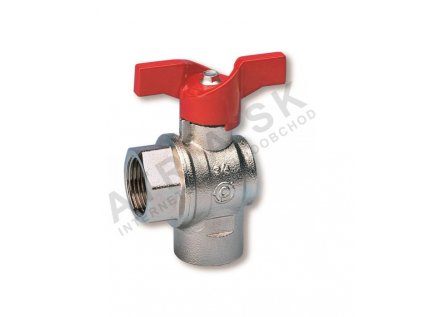

This category includes corner ball valves from series 59 and 59/1, designed for water shut-off in heating, plumbing, and irrigation systems. The valves are constructed from nickel-plated brass CW617N and are suitable for use in potable water systems, certified with ATEST. They operate with a butterfly handle and are available in different sizes and connection types to suit a variety of installation needs.

The valves are rated for PN 10 at +150°C and PN 16 at +100°C, making them suitable for both low- and medium-temperature applications. They are free of silicone components, ensuring compatibility with systems where silicone is restricted. The butterfly handle allows for quick and precise shut-off, ideal for maintenance or emergency isolation.

How to choose

• Select the correct size (1/2", 3/4", or 1") based on the pipe dimensions in the system.
• Choose between series 59 (internal FF thread) or 59/1 (external FM thread) to match the existing pipe connections.
• Ensure compatibility with system temperature and pressure ratings, particularly for applications exceeding +100°C.

Frequently asked questions

What is the maximum operating temperature for these valves?
The valves are rated for up to +150°C at PN 10 and +100°C at PN 16.

Are these valves suitable for potable water systems?
Yes, they are certified with ATEST for use in potable water applications.
