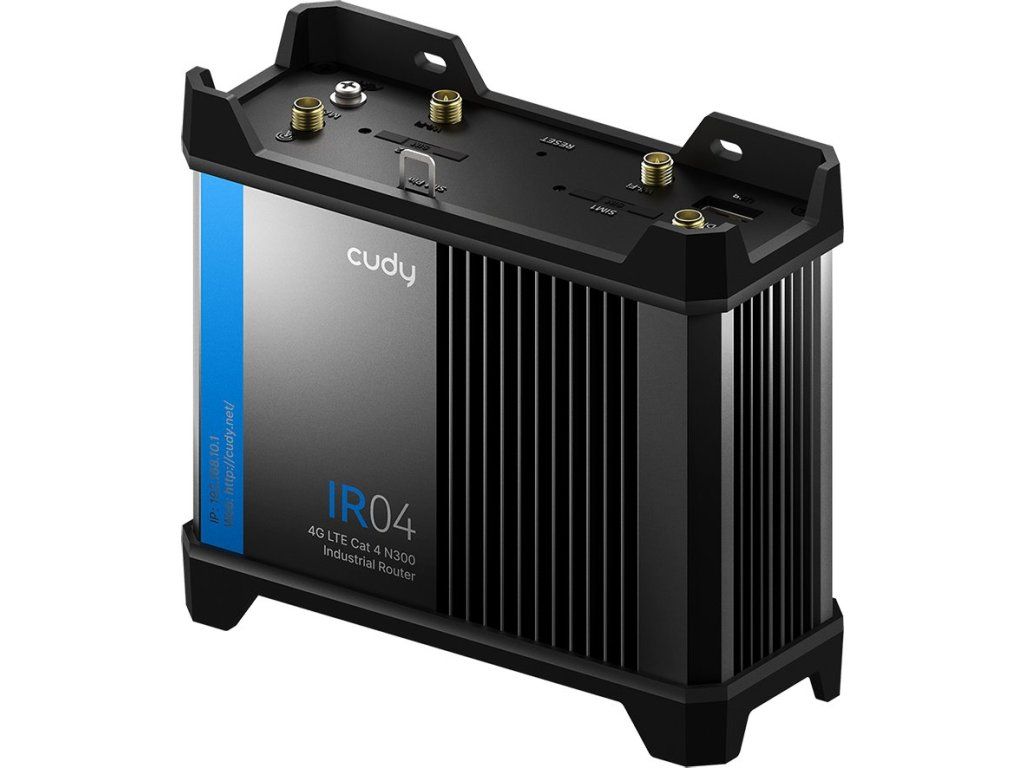

Cudy IR04 4G LTE Industrial Wi-Fi Router, RS-232/RS-485

Product detailed description

The IR04 Industrial Cudy Wi-Fi Router with 4G LTE Cat. 4 support provides maximum speeds of up to 150/50 Mbps (download/upload) and Wi-Fi speeds of 300 Mbps (2×2 MIMO). With two SIM slots, detachable antennas, RS-232 and RS-485 serial ports and multiple I/Os, it is ideal for IoT and remote monitoring. Reliable power supply via 4-pin, DC connector, 802.3at/af or passive 24-57 V PoE ensures flexible installation. Safety and durability are guaranteed by IP30 protection, an operating temperature of -40 °C to +75 °C and the EN61373 standard for vibration. Key features - 4G LTE industrial Wi-Fi router (4G Router, AP Router, Wisp modes) - 2.4GHz Wi-Fi 802.11b/g/n - Dual SIM slots with failover function - RS-232 and RS-485 ports - 2× LAN + 1× LAN/WAN Ethernet ports - Digital inputs and outputs (Dry, galvanically isolated, Open Collector) - Built-in relay and ADC input - VPN: IPsec, OpenVPN, WireGuard and others - SMS and remote management support - Operating temperature -35 to +75 °C - DIN rail and wall mounting - Power supply 11-57 V DC and 24-57 V PoE I/O (Inputs/Outputs) 1× Digital Dry input (0-1.2 V = state 1 | 1.8-3 V = state 0) and GND1 1× Digital galvanically isolated input (0-4 V = state 0 | 9-30 V = state 1) and GND2 1× Digital Open Collector output (30 V / 250 mA) and 1× GND3 1× +V (<30 V) and GND3 for external power (VCC) digital output 1× C and NO - common and normally disconnected internal relay contact without latching (max. 24 V / 4 A or 40 V / 4 A) 1× A and GND1 - ADC input. Analog voltage range: 0-24 V. Input can be configured for 4-20 mA sensor protocol as current measurement (AcL) Package contents - Device - (2) LTE antenna - (2) Wi-Fi antenna - Patch cable - Power supply 12 V / 1 A - I/O terminal block - DIN rail bracket
