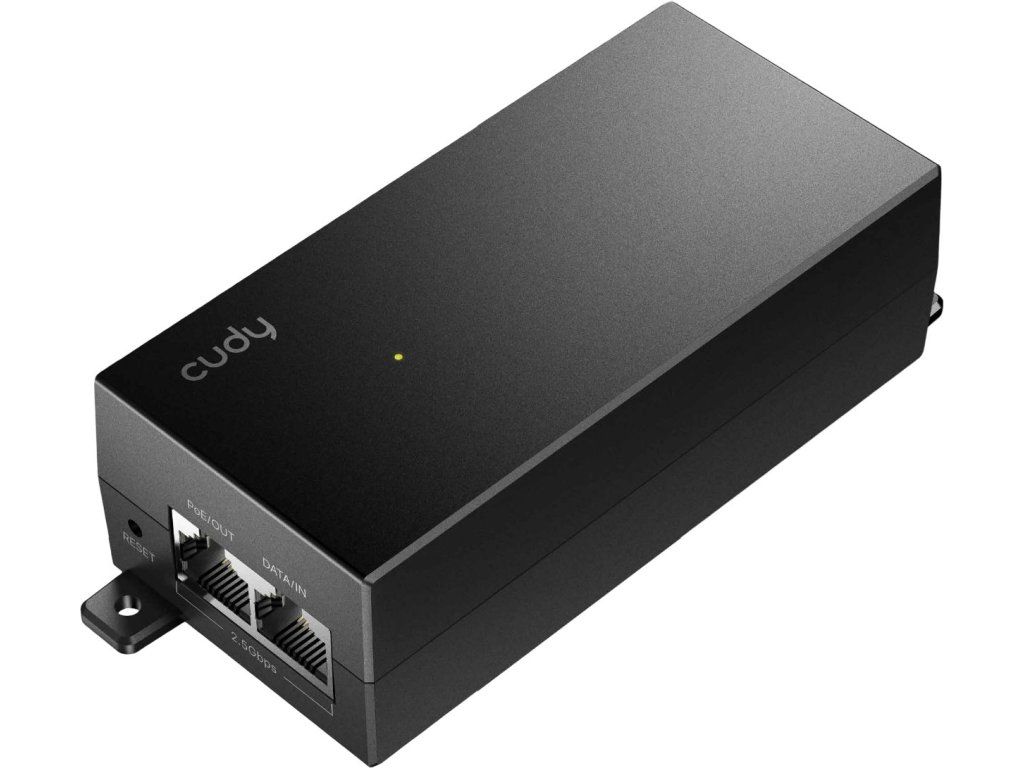

Cudy POE200H 2.5G PoE injector, 802.3af/at, 30W

Product detailed description

Cudy's powerful PoE injector enables power and data transmission up to 100 meters with support for 10M/100M/1G/2.5G speeds. Thanks to 802.3af/at standards, it provides 30W of power, making it ideal for powering devices such as IP cameras, access points, VoIP phones or other network switches. The wall-mountable plastic housing allows for flexibility and reliable operation. Key Features - Supports 802.3af/at/bt PoE (2-pair) - 30 W output power - Supports 10M/100M/1G/2.5G speeds - Transmission distance up to 100m - LED indication of power and PoE load - Metal housing with wall mount option - Surge protection - Dimensions: 123 × 51 × 35 mm Product parameters: Connectors and interfaces Ethernet speed [Mbps] 100/1000/2500 Power supply Power supply on pins 1,2 (+), 3,6 (-) Input voltage [V] 230V AC Output power [W] 30 Supported PoE-Out standards 802.3af, 802.3at Number of PoE Out ports 1 Output Voltage [V] 54 Output current [A] 0.56 Physical characteristics Shielding Yes LED indication Yes Operating temperature [°C] -10 to 40 Depth [mm] 123 Width [mm] 51 Height [mm] 35
