DAB.ACCESSORIES ED - Control panel 1 pump

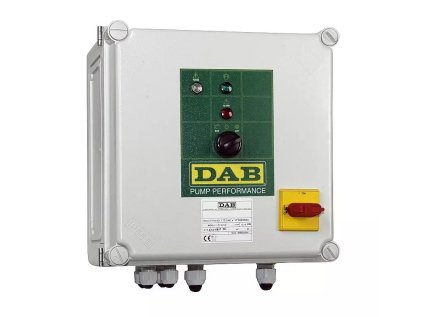

CONTROL PANEL FOR 1 PUMP

DAB.PRISLUSENSTVI ED

The control panel protects the pumps against overload, short circuit or overtemperature by means of fuses with manual reset. Types ED3M, ED3MHS, from ED2,5 to ED30T SD allow signal connection via thermal protection if the pump is equipped with it. The panel is supplied complete with terminals for connection of the pump motor and float switches. It is complete with terminals for the use of an alarm float and terminals (potential free contact) for remote triggering of an audible or light alarm. Types ED3MHS and ED2, 4MHS are equipped with an automatic starting torque boost device.
Included:

• Main switch with lockable door (except single phase version)
• Own protection transformer for power supply
• Button on front panel for manual operation (single-phase version)
• Front panel switch for manual operation - 0 - Automatic operation
• Error message
• Pump running indication
• Voltage status indication
• Ambient temperature range: -10 °C to +40 °C
• Degree of protection: IP55
