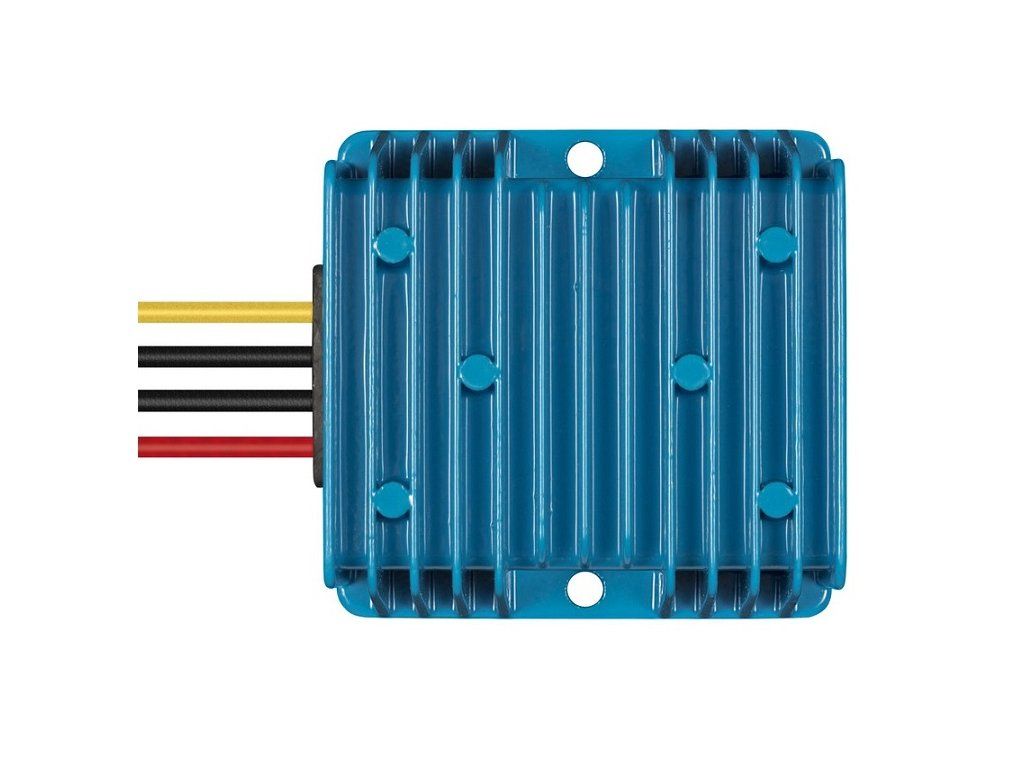

DC/DC converter from 24V to 12V Orion IP67 24/12-10

Product detailed description

The IP67 model is fully encapsulated, water and shock resistant, with overheat and ignition protection. It is equipped with 1.8m of cabling. Probably the widest selection on the market! Recently there has been a significant increase in electrical appliances and electronic equipment. As electronic devices such as mobile phones and car hi-fi systems or navigation and radio accessories are designed almost exclusively for 12 VDC, we offer DC/DC dC/DC converters that convert 24 VDC to a stable DC voltage of 12 VDC and vice versa. The converters are characterized by high efficiency together with unparalleled safety. Lower quality devices can cause irreparable damage to your 12 VDC system. By using Orion voltage converters you will avoid this problem. In addition to the Orion 24V DC to 12V DC converter with GO /with galvanic isolation/ and without GO /without galvanic isolation input and output, there are a number of other models /see technical specifications below/. All models with 13.8V output can also be used as a 12V battery charger. Specifications: 15-40V DC input Undervoltage at which disconnection occurs: 13V Voltage at which restart occurs: 14V No-load current: 20mA DC output voltage: 12V / + - 3% Maximum continuous output current: 10A Efficiency: 93% Ripple and noise: 75mV pp Operating Temperature: -40~70°C (performance is quoted at temperature up to 40°C, above 40°C there is a 3% reduction in performance for every 1°C) Overload protection: resumes operation automatically after the fault is cleared Short circuit resistance: yes Protection against incorrect polarity: external fuse or circuit breaker (not supplied) Degree of protection: IP67 DC connection: 2 input and 2 output cables, length 1.8m Inputs: 1.5mm2 15 AWG Outputs: 1.5mm2 15 AWG Dimensions: 74 x 74 x 32mm Weight: 300g
