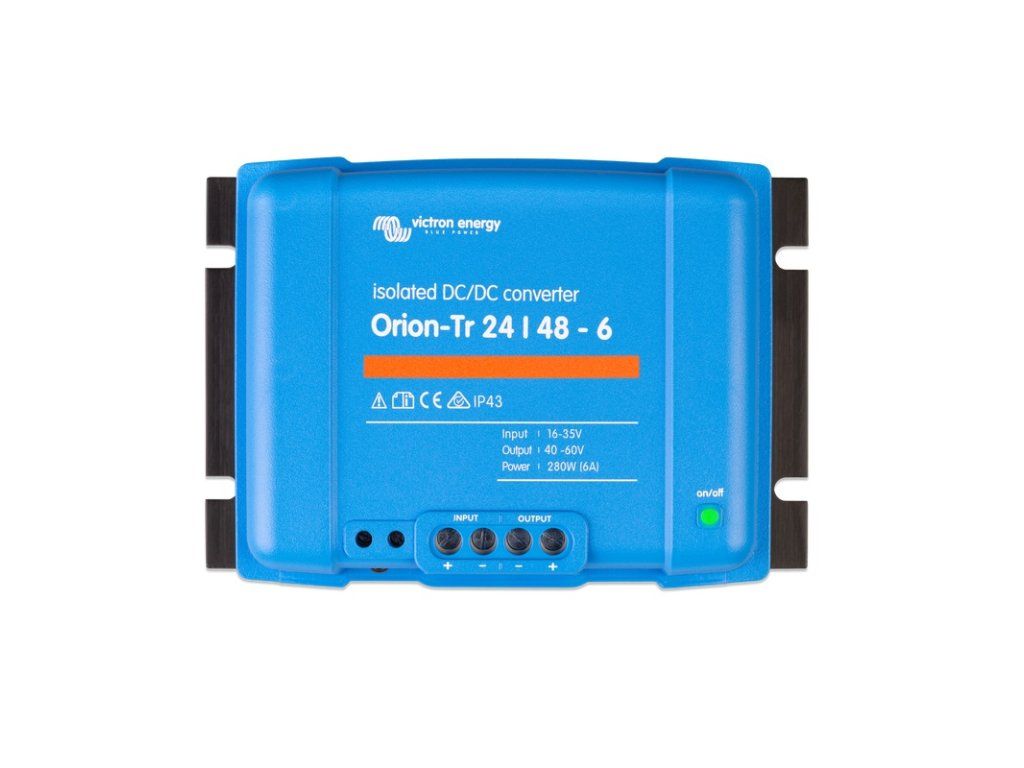

DC/DC converter from 24V to 48V Orion-Tr 24/48-6A (280W)

Product detailed description

Introducing the new model DC/DC converter Orion-Tr insulated This professional DC/DC converter offers many unique features, beautiful design and easy installation. The warranty on this model is 5 years. Remote on/off control Remote on/off control eliminates the need for a high current resistant switch on the input line. The remote control input can be switched by a low voltage switch or, for example, a motorized start/stop switch (see manual). Charger functions Adjustable output voltage: these converters can thus also be used as chargers for example to charge a 12 V starter battery, or for an additional battery in an otherwise 24 V system Parallel operation All models are short-circuit proof and can be operated in parallel to increase output power The number of units that can be connected in parallel is unlimited. Resistance Moisture and dust protection class IP43 Quick and easy installation Conventional screw terminals are available for cable connection, so you won't need any special connectors to connect the converter. When installing, orient the screw terminals downwards. screw terminals The input fuse is on the 12V and 24V models For detailed technical data, please refer to the enclosed brochure at the bottom of this card. Technical parameters Input voltage range 16-35V Undervoltage shutdown 14V Restart at 15V undervoltage Rated output voltage 48.2V Output voltage adjustment range 40-60V Output voltage tolerance +/- 0.2V Output noise 2mV rms Continuous output current at output voltage a (at 40°C ) 6A Maximum output current (10 s) at output voltage 8A Short circuit output current 25A Continuous output power at 25°C 320W Continuous output power at 40°C 280W Efficiency 89% Off current <80mA Galvanic isolation 200V DC between input, output and enclosure Operating temperature range -20 to +55°C Humidity Max. 95% non-condensing DC connection Screw terminals Maximum conductor cross section 13 mm2 (AWG6) Weight 1.3 kg Dimensions 130x186x70mm Certification Safety EN60950 Emissions EN 61000-6-3, EN 55014-1 Immunity EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive ECE R10-4
