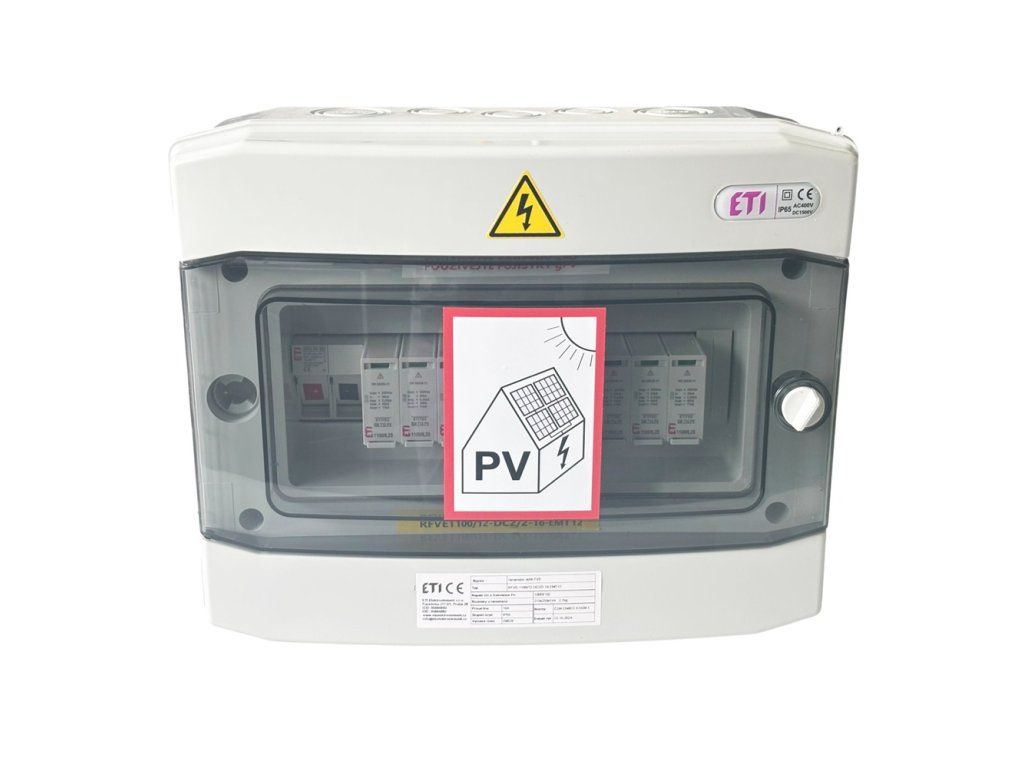

Electrical switchboard for PV, 2 strings, 2 arresters, 1000V DC

Product detailed description

Complete wall-mounted substation class 1+2, maximum voltage 1000 V designed for surface mounting and installation of 2 strings including certification for use in photovoltaic system. It is equipped with 2 surge arresters T1+T2, 2 fuse disconnectors and a total of 4 fuses (10 x 38 gPV 16A/1000V). The IP65 degree of protection means that the substation is completely resistant to dust and gushing water from all angles when installed correctly. Package contents - Switchboard - Dowels + screws - 7x Cable gland Technical parameters: Power supply Total number of strings 2 Number of arresters 2 Maximum voltage [V] 1000 Physical characteristics Degree of protection IP65 Wall-mounted design Application Outdoor Weight [g] 2800 Depth [mm] 148 Width [mm] 318 Height [mm] 258 Colour Grey
