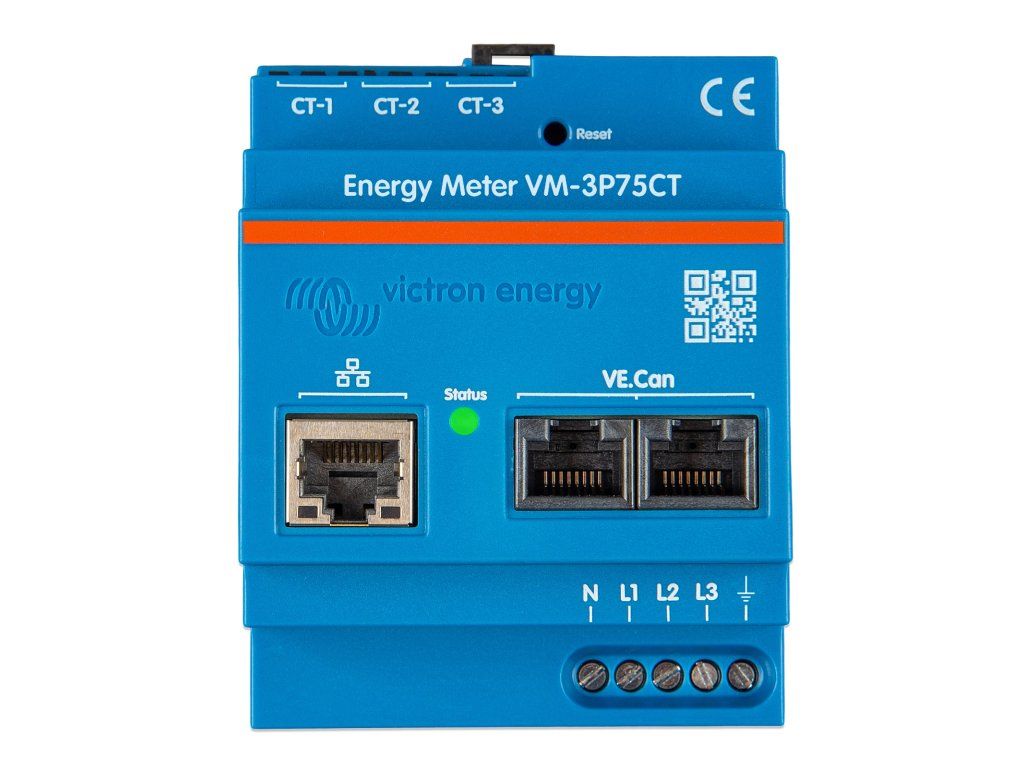

Energy Meter VM-3P75CT

Product detailed description

The VM-3P75CT meter is designed to measure the power and energy of single and three-phase ESS systems, or to measure the power of a PV inverter, AC generator or inverter and hybrid inverter. It has built-in Ethernet and VE.Can ports for connection to GX equipment, and current sensors allow for easy and quick installation without modifying existing wiring. The meter works out of the box (plug and play) as a network meter for most systems. Configuration (via VictronConnect) is only required to change the role (Grid Meter, PV Inverter, AC Genset or AC Load Meter) and manually configure the IP. The data can be displayed on a GX device such as Cerbo GX or Ekrano GX, as well as in VictronConnect and the VRM portal. Features: Measures up to 80A per phase (rated at 75A) Modbus/UDP communication via Ethernet Includes split-core current sensors for easy installation without modifying existing wiring Uses vector registration method (vectors of each phase L1, L2 and L3 are added together) The VM-3P75CT can be configured for four different roles in a GX device such as Cerbo GX or Ekrano GX: As a network meter and used as a control input for an energy storage system (ESS) For measuring the output of a PV inverter For measuring the output of an AC Genset As an AC meter for measuring a dedicated AC load circuit Offers two options for connection to the GX device: Wired Ethernet connection to the local network via the built-in Ethernet port so that the GX device can access it. Wired VE.Can connection via the built-in VE.Can port directly to the GX device.
